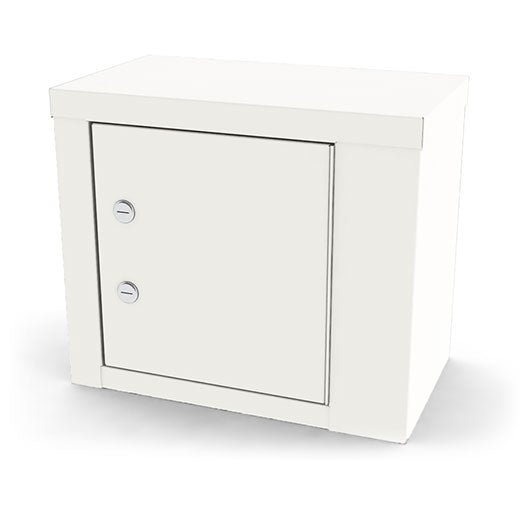

Compact Physical Protection & Regulatory Double-Lock Security The UMF Medical Single Door, Double Lock Narcotics Cabinet (Model 7787) delivers robust physical security and strict regulatory compliance for storing Schedule II through V controlled substances, opioids, and high-value injectable therapeutics. Engineered to satisfy Health Canada controlled substance directives, provincial college licensing requirements, and hospital pharmacy inspection criteria, this space-efficient safe combines two independent cam locks on a heavy-duty reinforced door with an adjustable shelf for versatile bedside inventory control.

Dual Keyed-Different Mechanical Locking Architecture To eliminate unauthorized medication diversion and internal theft, Model 7787 enforces a true dual-custody protocol across a single reinforced outer door:

1. Two independent industrial-grade cam locks positioned along the face of the door, each keyed differently to enforce dual-signatory access or separate supervisor/clinician key custody.
2. Two cut keys per lock (four keys included per cabinet).
3. A heavy-duty, full-length continuous piano hinge securing the door across its entire height, eliminating pry points and door sag.
4. An outer door engineered from 20-gauge double-walled welded steel that resists mechanical tampering and impact.

Space-Saving Clinical Footprint with Adjustable Shelf Measuring 12.0" H x 14.125" W x 8.125" D, Model 7787 features one height-adjustable steel shelf, making it an ideal choice for treatment rooms, minor procedure bays, day clinics, dental surgical suites, and family medical clinics where wall space is at a premium. Caregivers can adjust the shelf height to isolate injectable vials, oral dosages, and blister packs. Factory pre-drilled holes in the rear and base panels allow fast, solid mounting to drywall studs, masonry backings, or directly inside locked casework cabinetry.

Key Features:

• True Double-Lock Compliance: Dual cam-style key locks on a single door with separate, keyed-different cylinders satisfy regulatory chain-of-custody protocols.
• Double-Walled Steel Door: Heavy-duty 20-gauge welded steel chassis paired with a 20-gauge double-wall reinforced door.
• Full-Length Continuous Piano Hinge: Heavy-duty hinge eliminates vulnerable pry points and guarantees smooth, long-term door alignment.
• 1 Height-Adjustable Metal Shelf: Provides interior flexibility to accommodate taller medication vials or boxed ampoules.
• Antimicrobial Hospital-Grade Powder Coat: Non-porous baked powder coat finish resists corrosion and withstands frequent sanitization with hospital disinfectants.
• Versatile Pre-Drilled Mounting: Pre-drilled holes allow secure surface anchoring to drywall studs, masonry backings, or inside clinic cabinetry.
• Manufacturer Warranty: Backed by UMF Medical’s 3-year limited warranty.

Specifications:

• Manufacturer: UMF Medical
• Collection: Single Door Narcotics Cabinets
• Model / SKU: 7787
• External Dimensions: 14.125" W x 8.125" D x 12.0" H (35.9 cm W x 20.6 cm D x 30.5 cm H)
• Cabinet Shell: 20-gauge welded steel
• Outer Door: 20-gauge double-wall steel
• Locking System: 2 independent cam key locks (keyed differently; 2 keys per lock, 4 keys total)
• Hinge: Continuous heavy-duty piano hinge
• Shelving: 1 adjustable steel shelf
• Product Weight: 14 lbs (6.4 kg)
• Mounting: Factory pre-drilled for wall mount or inside-cabinet installation
• Warranty: 3-year limited warranty
