Single Patient Platform Efficiency: Pre-Op, Transport, Procedure & Post-Op Recovery

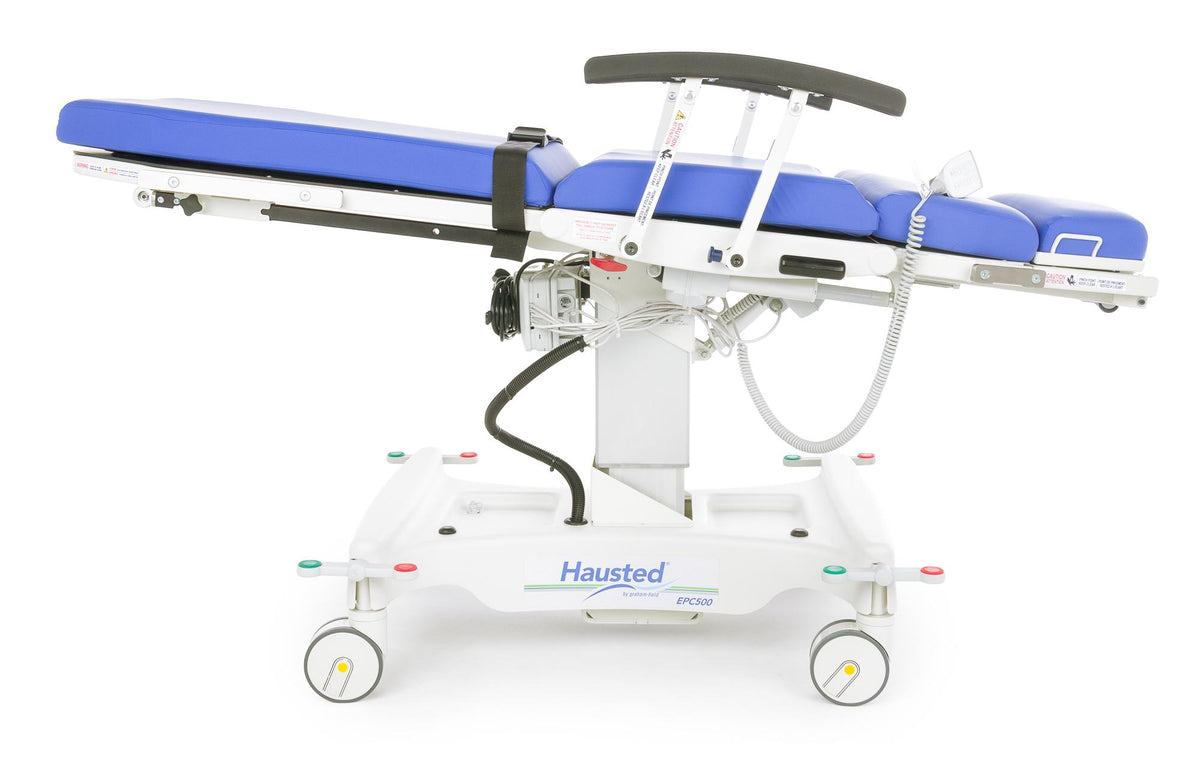

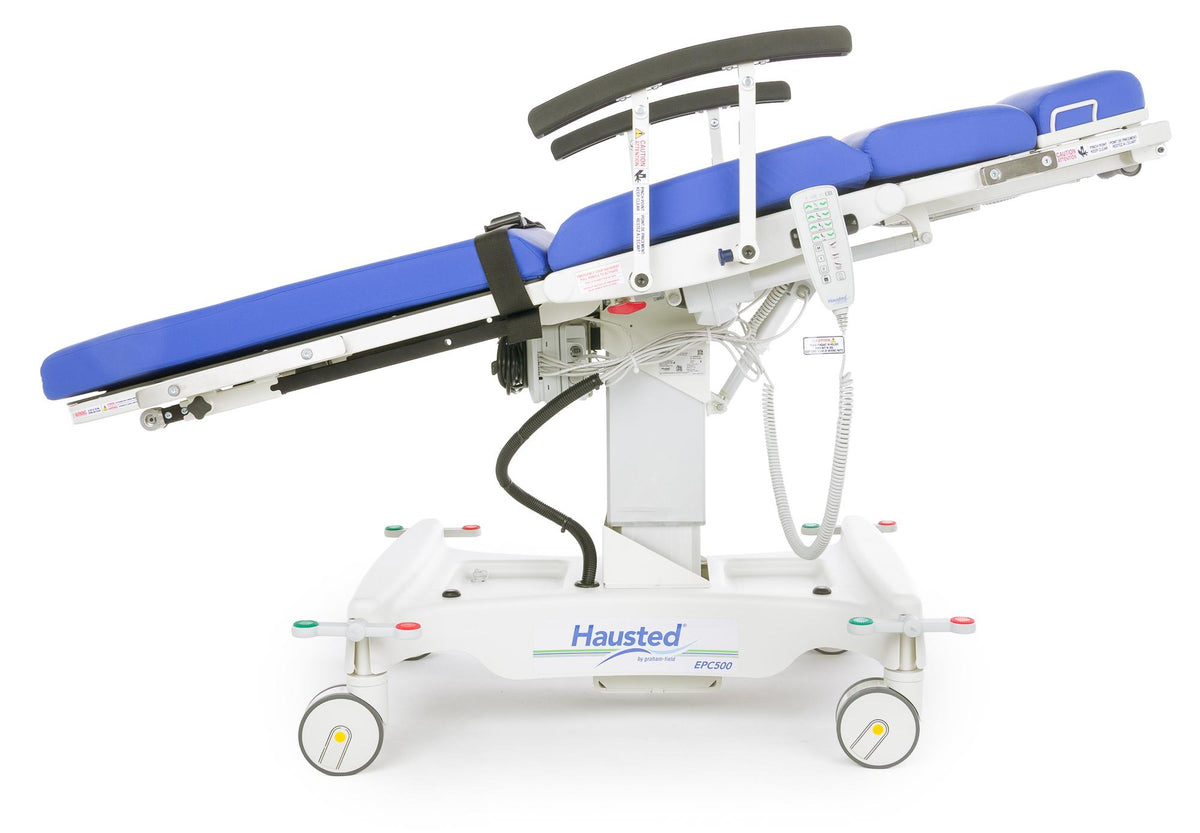

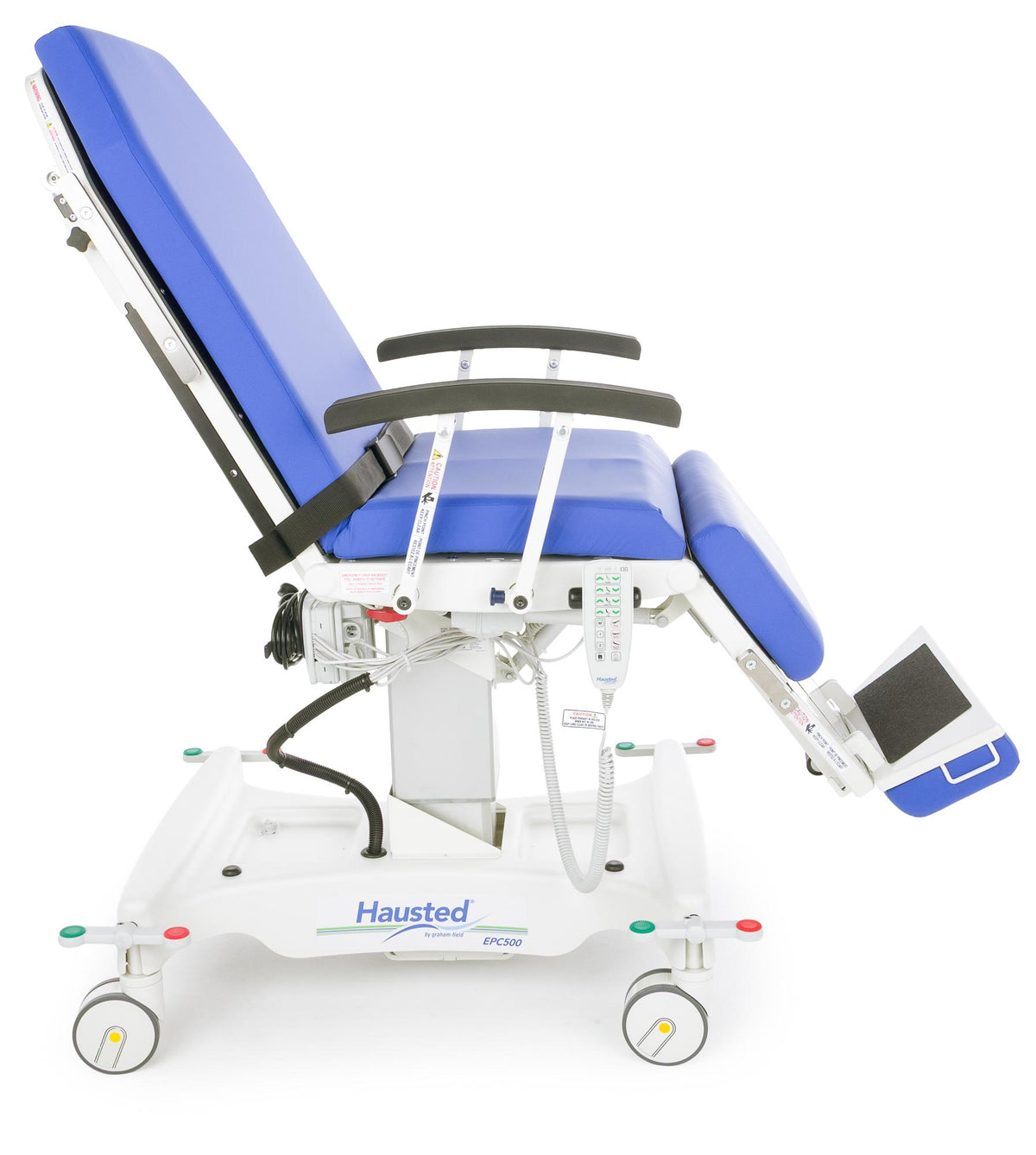

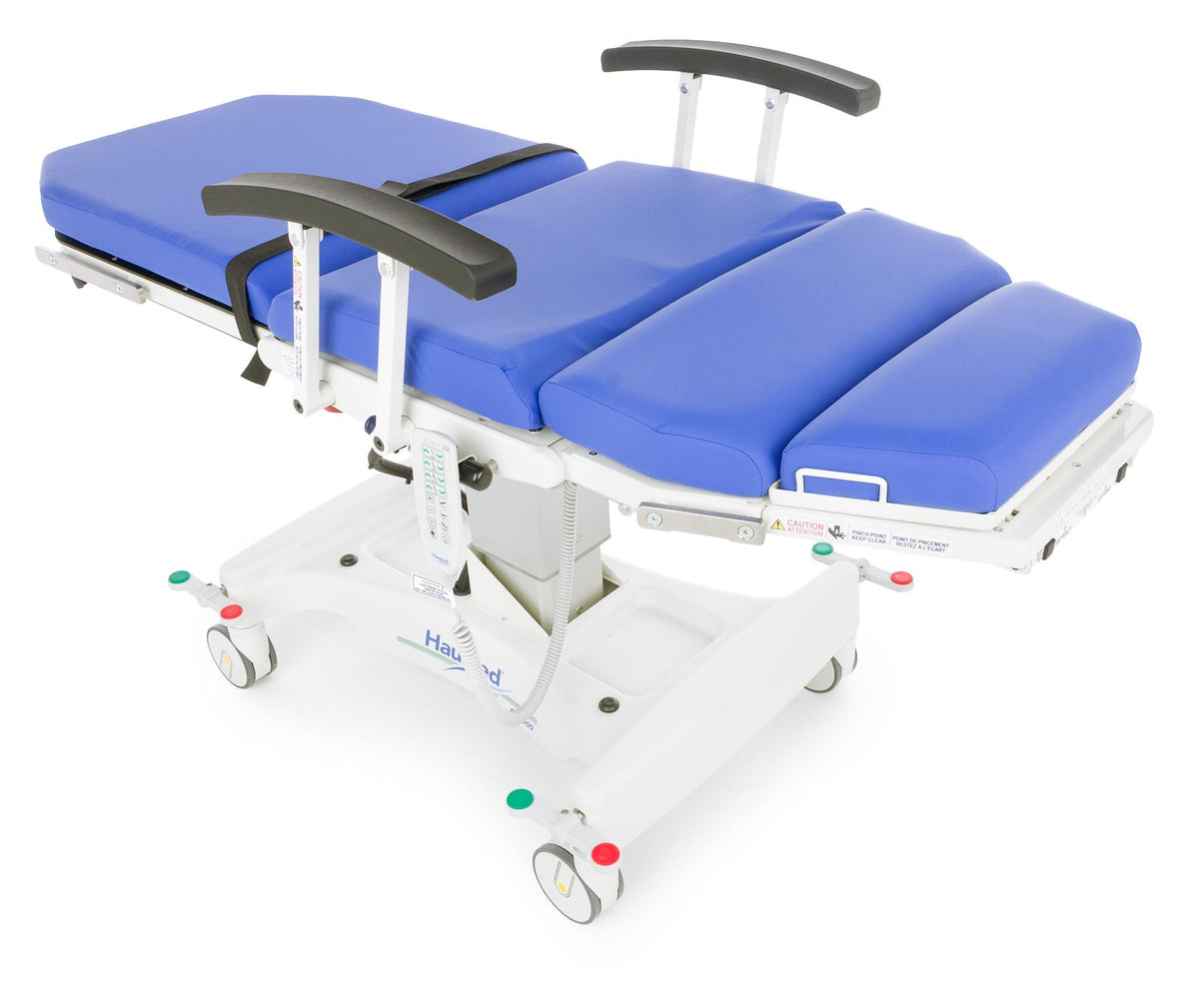

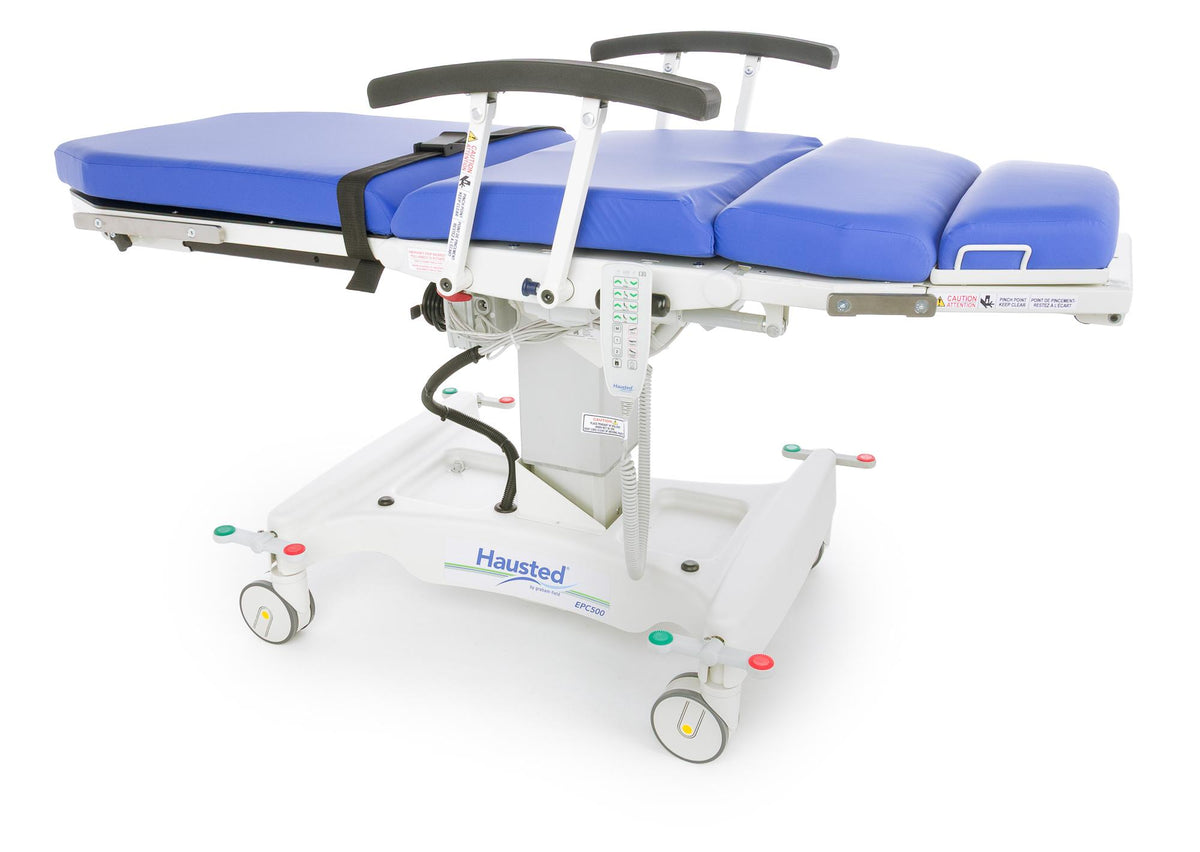

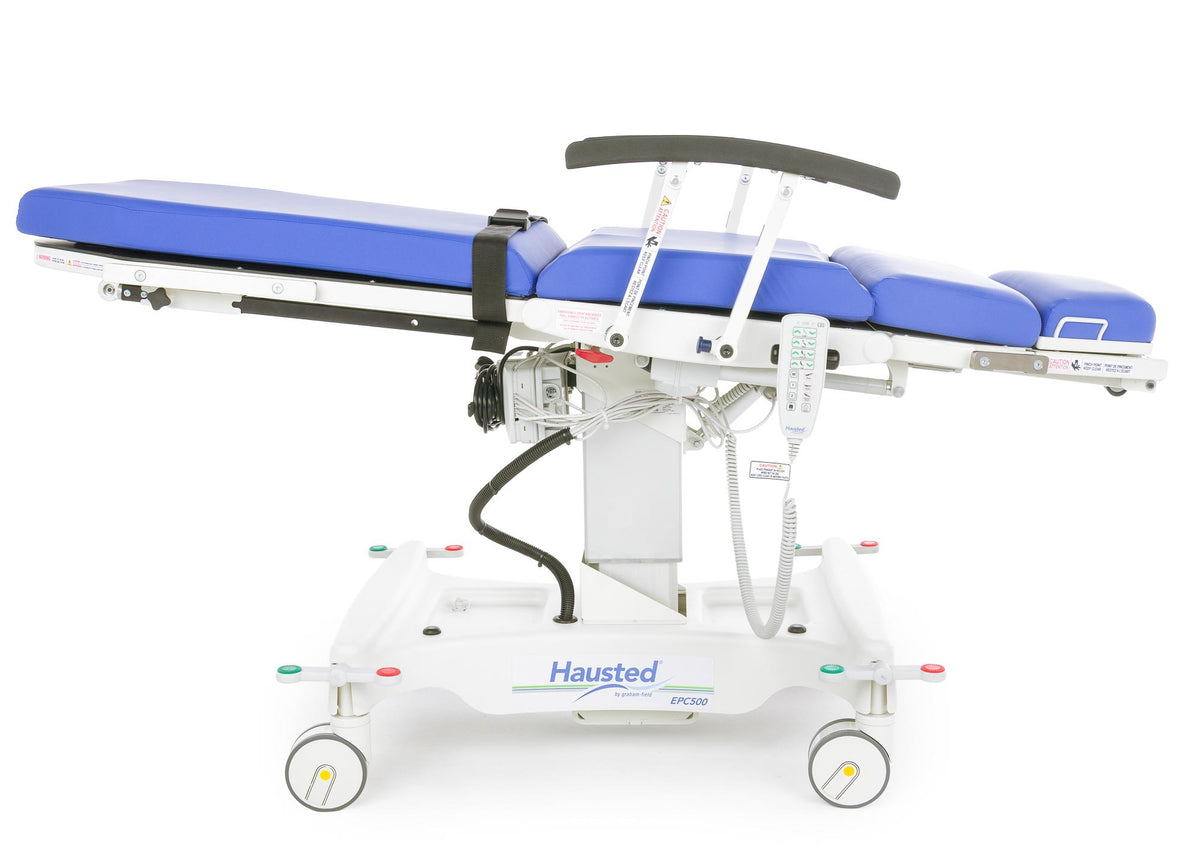

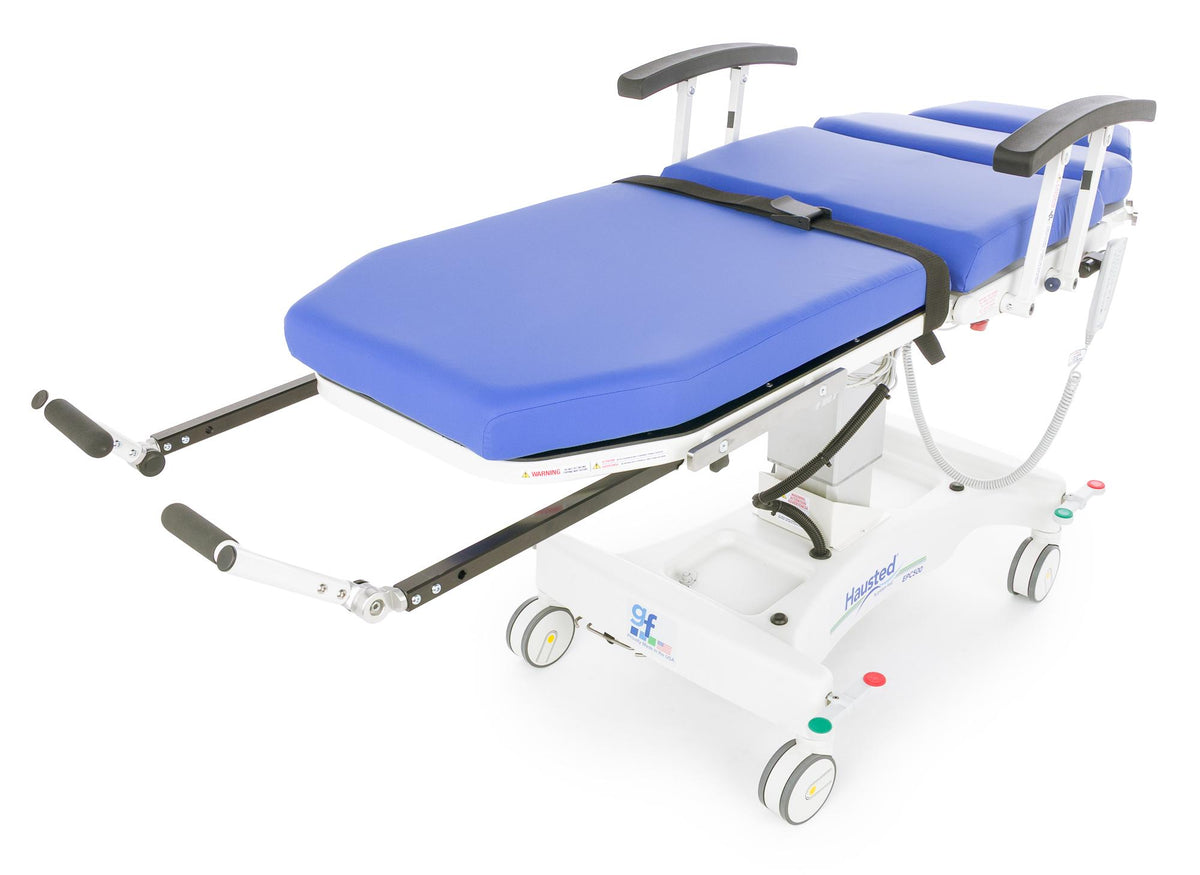

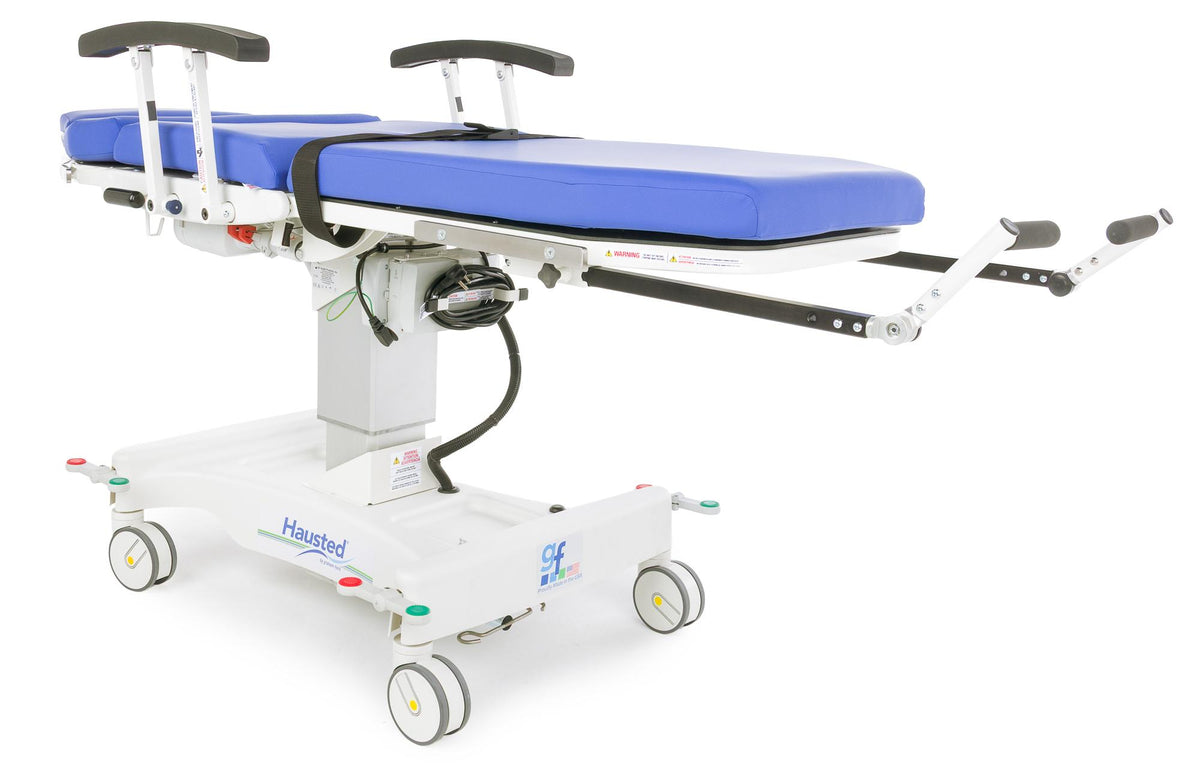

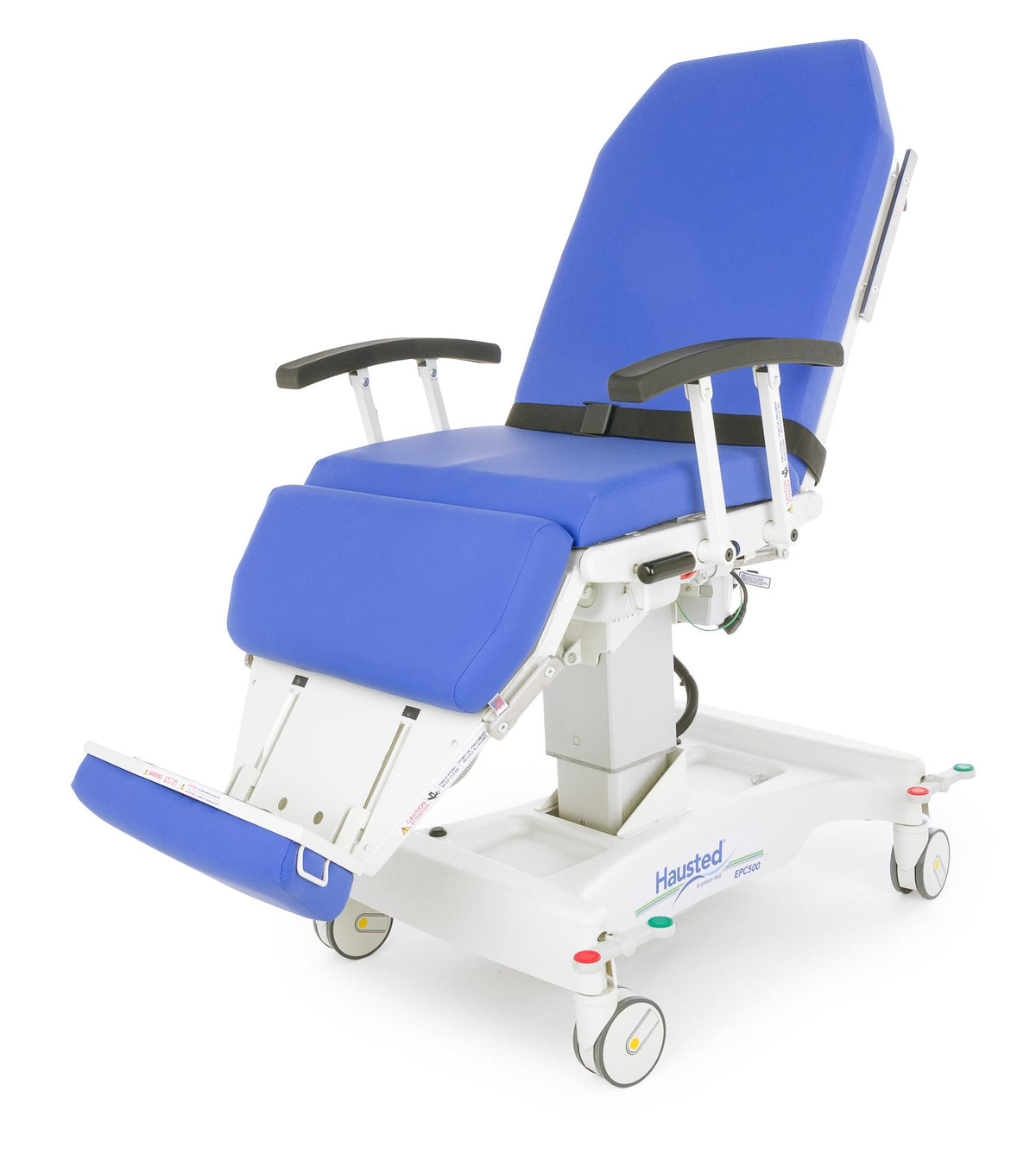

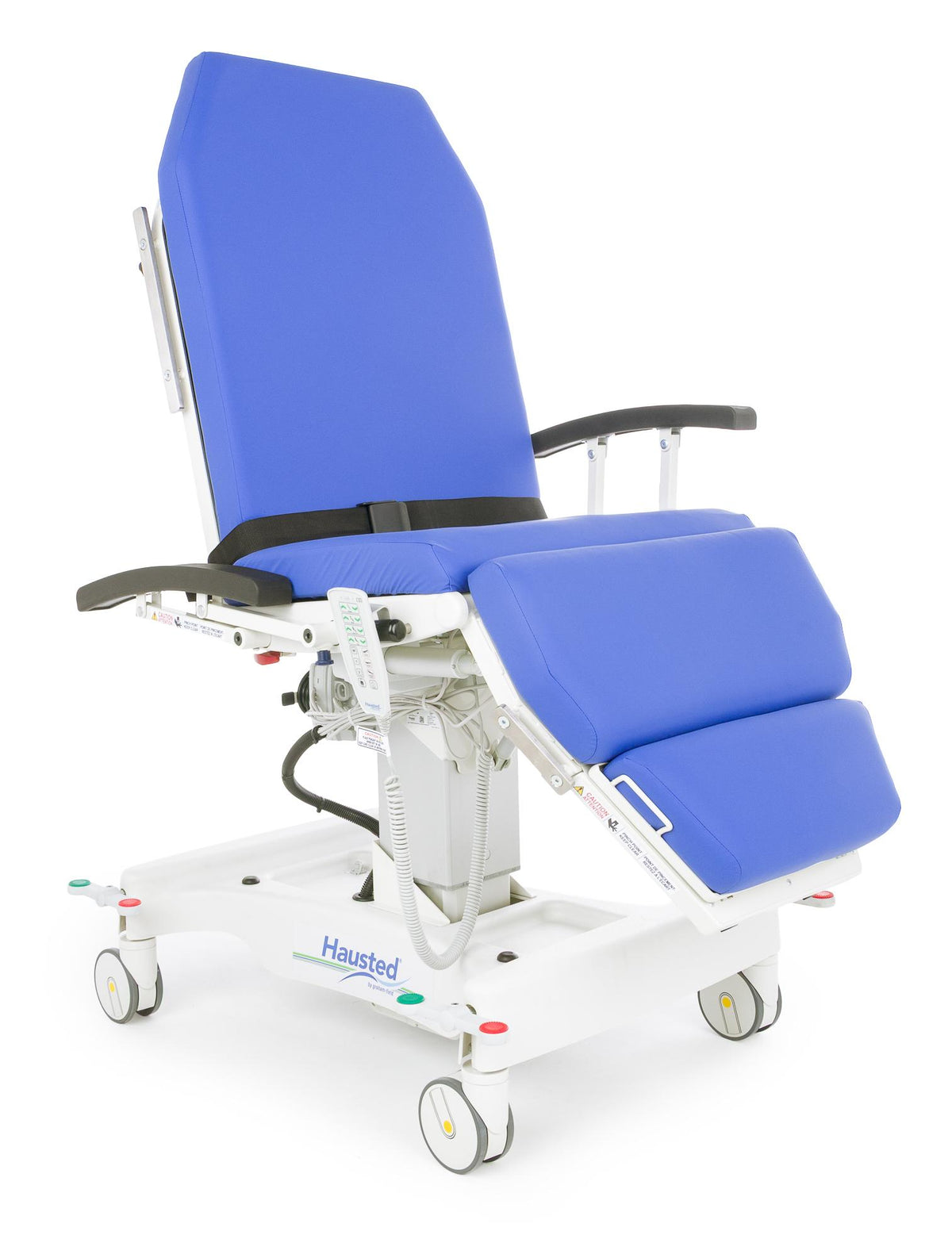

The Hausted® EPC500 Series Multi-Specialty Procedure Chair is engineered to revolutionize clinical throughput and patient dignity in ambulatory surgery centers, endoscopy suites, pain management clinics, plastic surgery practices, and emergency departments. Built on Hausted’s proven Single Patient Platform philosophy, the EPC500 accommodates the patient through every phase of care—from pre-operative prep, direct transport into the operating suite, surgical execution, and transfer-free post-operative recovery. By eliminating multiple patient transfers, the EPC500 drastically reduces room turnover times while protecting healthcare personnel from debilitating occupational lifting injuries.

Full Radio-Lucent Backrest, 20" to 40" Height Range & Dura-Gel® Cushioning

Engineered with heavy-duty commercial mechanics and versatile clinical positioning capabilities, the EPC500 delivers uncompromising operative stability:

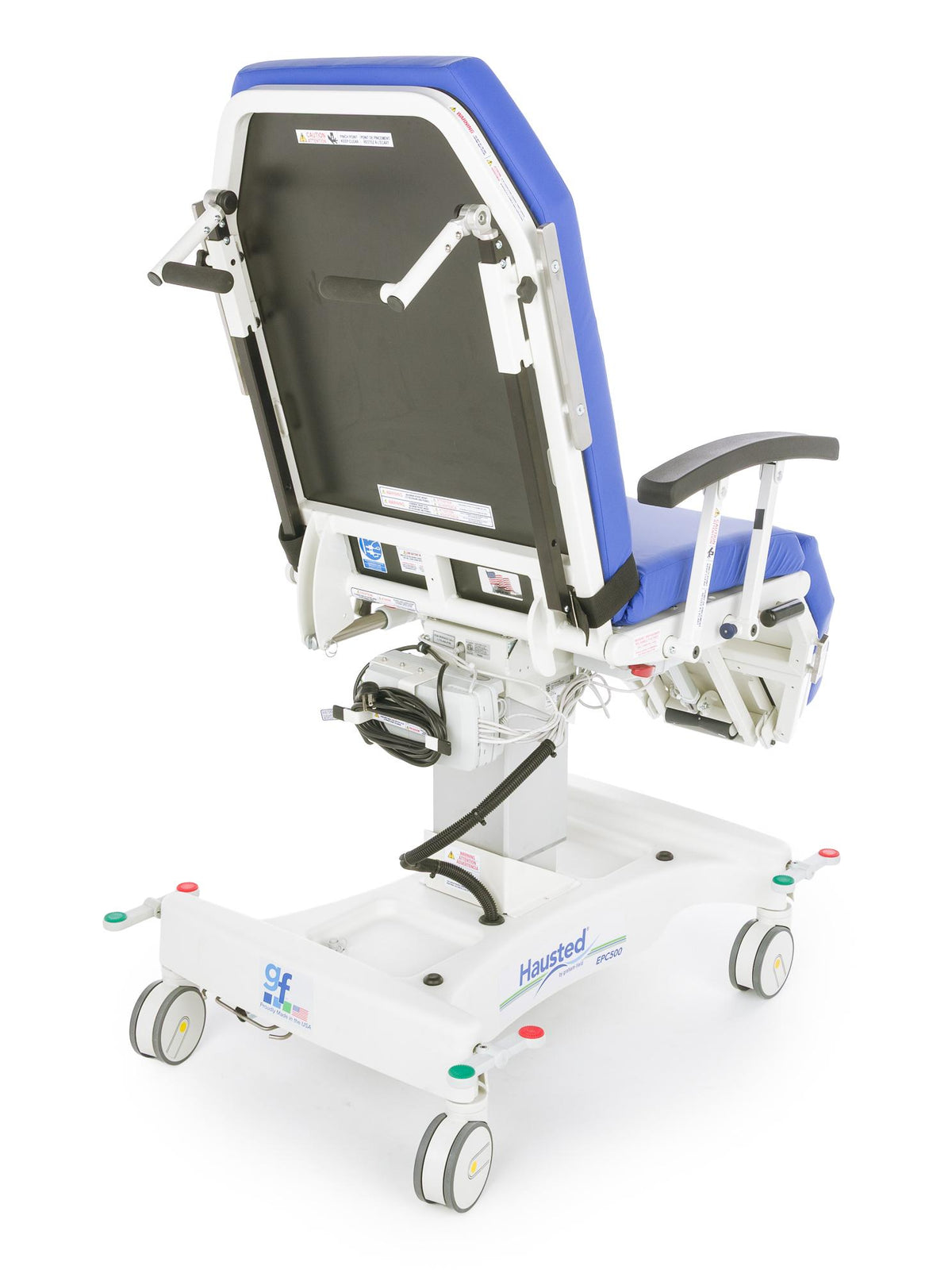

• Full Radio-Lucent Backrest: Clear imaging access accommodates C-arm fluoroscopy and X-ray procedures directly on the chair without repositioning or transferring the patient.
• Industry-Leading 20" to 40" Elevation Range (50.8 cm to 101.6 cm): Low minimum height facilitates safe wheelchair boarding, while the 40" upper height provides optimal ergonomic comfort for standing or seated surgeons.
• 600 lb (272.2 kg) Bariatric Weight Rating: Reinforced structural steel lift column supports demanding bariatric surgical cases with zero frame wobble.

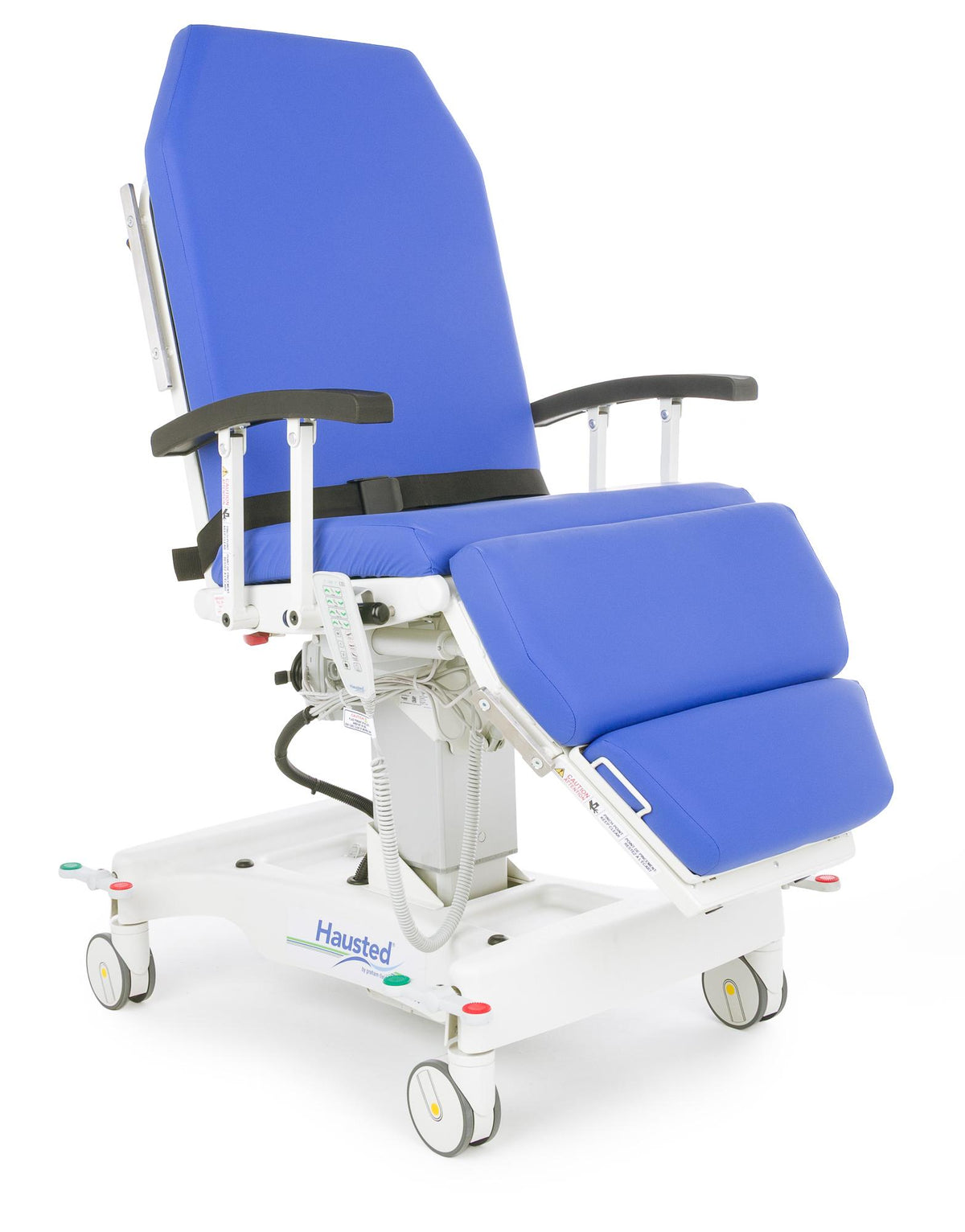

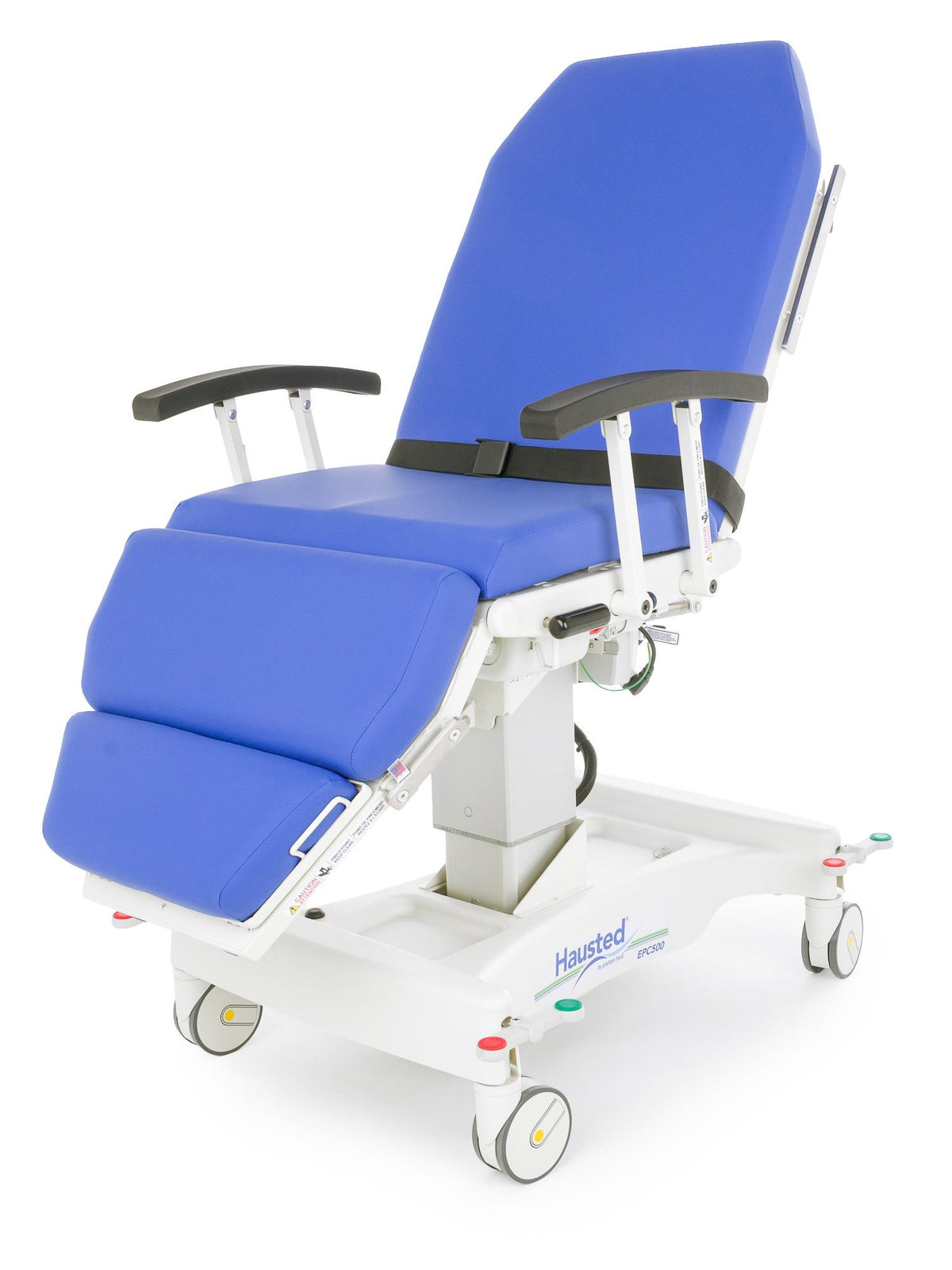

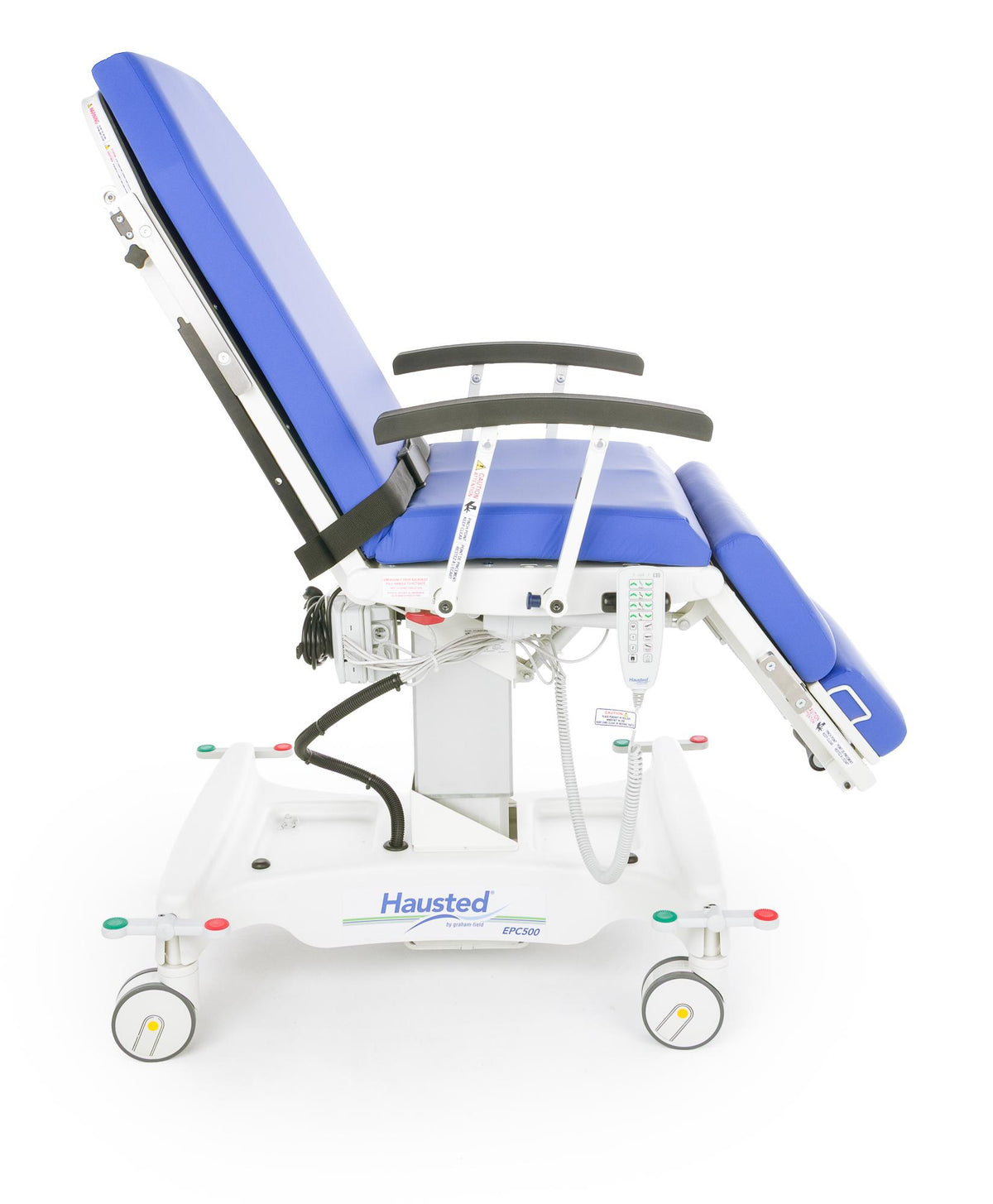

• Full 4-Way Power Articulation: Independent motorized adjustment of height, backrest angle (0° to 90°), seat tilt (0° to 15°), powered leg extension, 15° Trendelenburg, and 6° reverse Trendelenburg.
• Quick-Release Backrest Drop: Bilateral emergency manual release bar instantly flattens the backrest to horizontal for emergency CPR protocols.
• 3" Multi-Density Pad with Dura-Gel® Insert: Combines visco-elastic memory foam with a specialized Dura-Gel seat insert to distribute pressure points and prevent tissue breakdown during lengthy procedures.
• Primastretch Fluid-Resistant Healthcare Fabric: Durable 4-way stretch urethane-coated cover prevents fluid penetration, resists stain-causing bacteria, and reduces skin shear.
• Counter-Rotating Foldaway Side Rails: Integrated urethane armrests drop cleanly beneath the patient surface for zero-gap lateral transfers and wide surgical clearance.

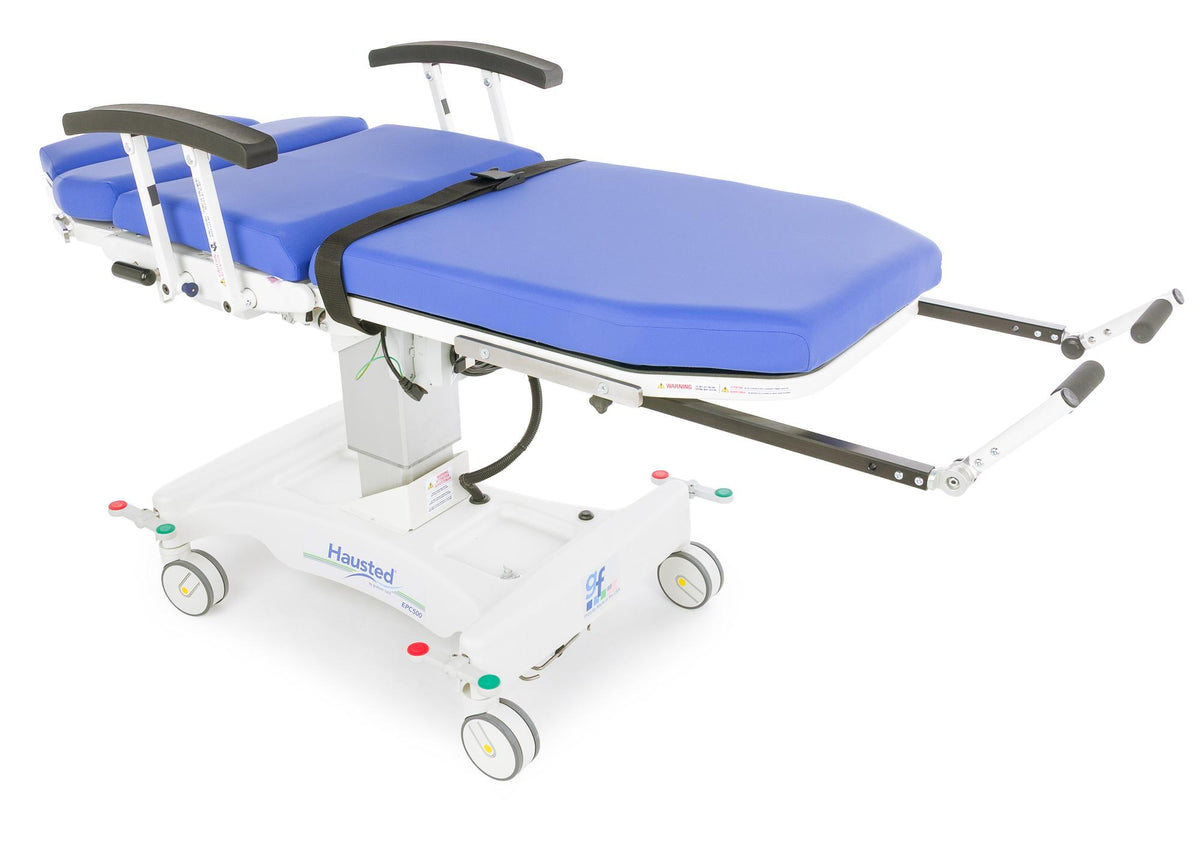

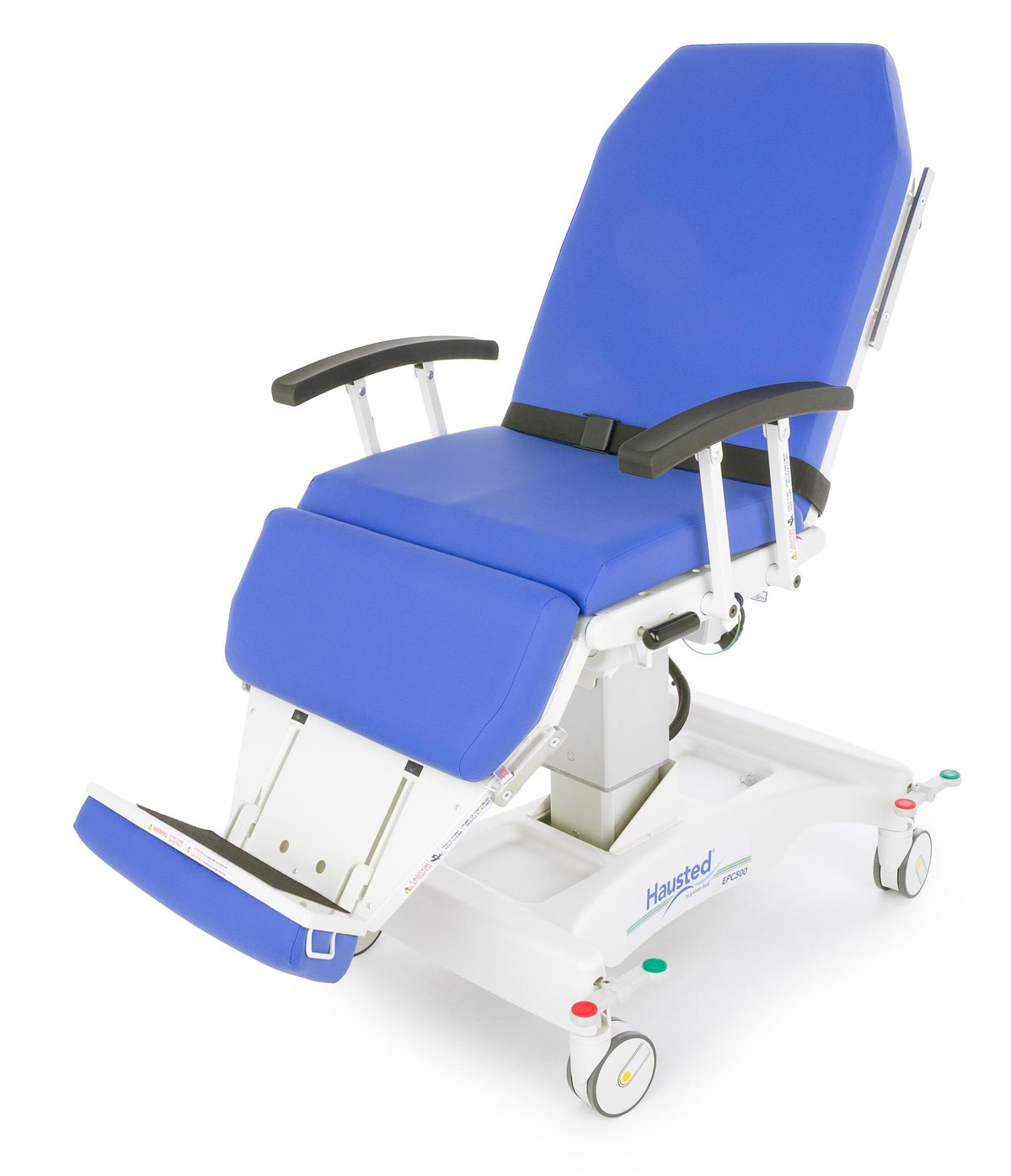

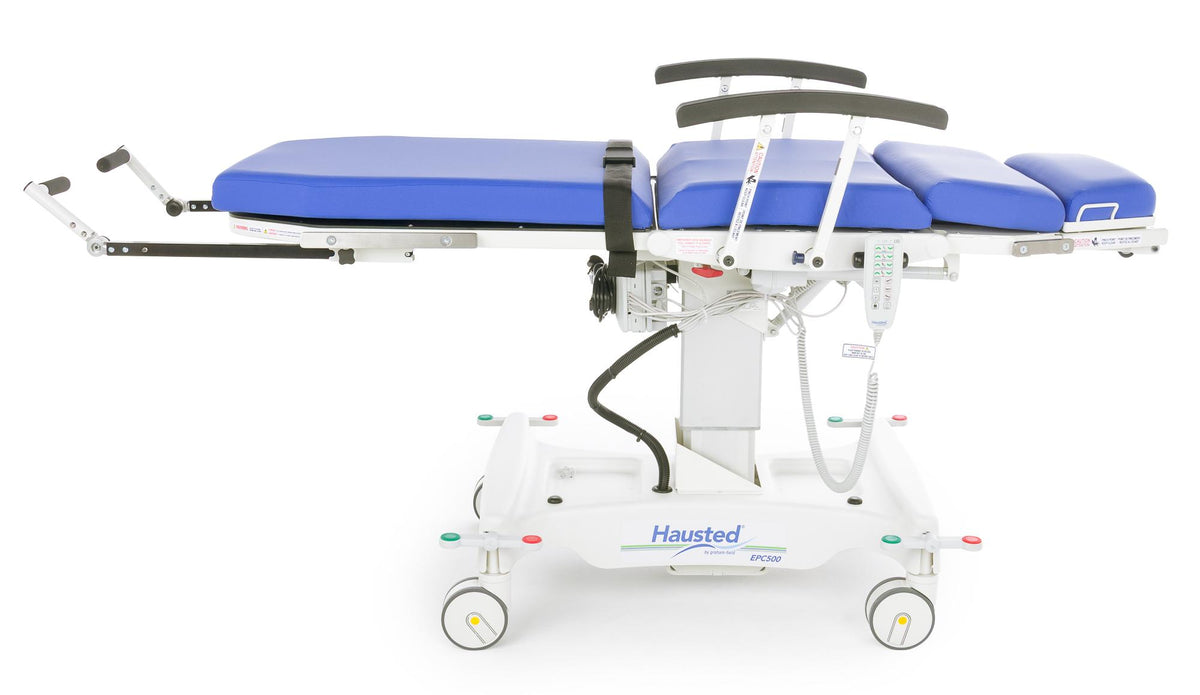

• Integrated Powered Leg Extension: Padded leg rest extends the patient surface up to 78.5" (199.4 cm) and includes an adjustable 2-position foldaway footrest for taller patients.

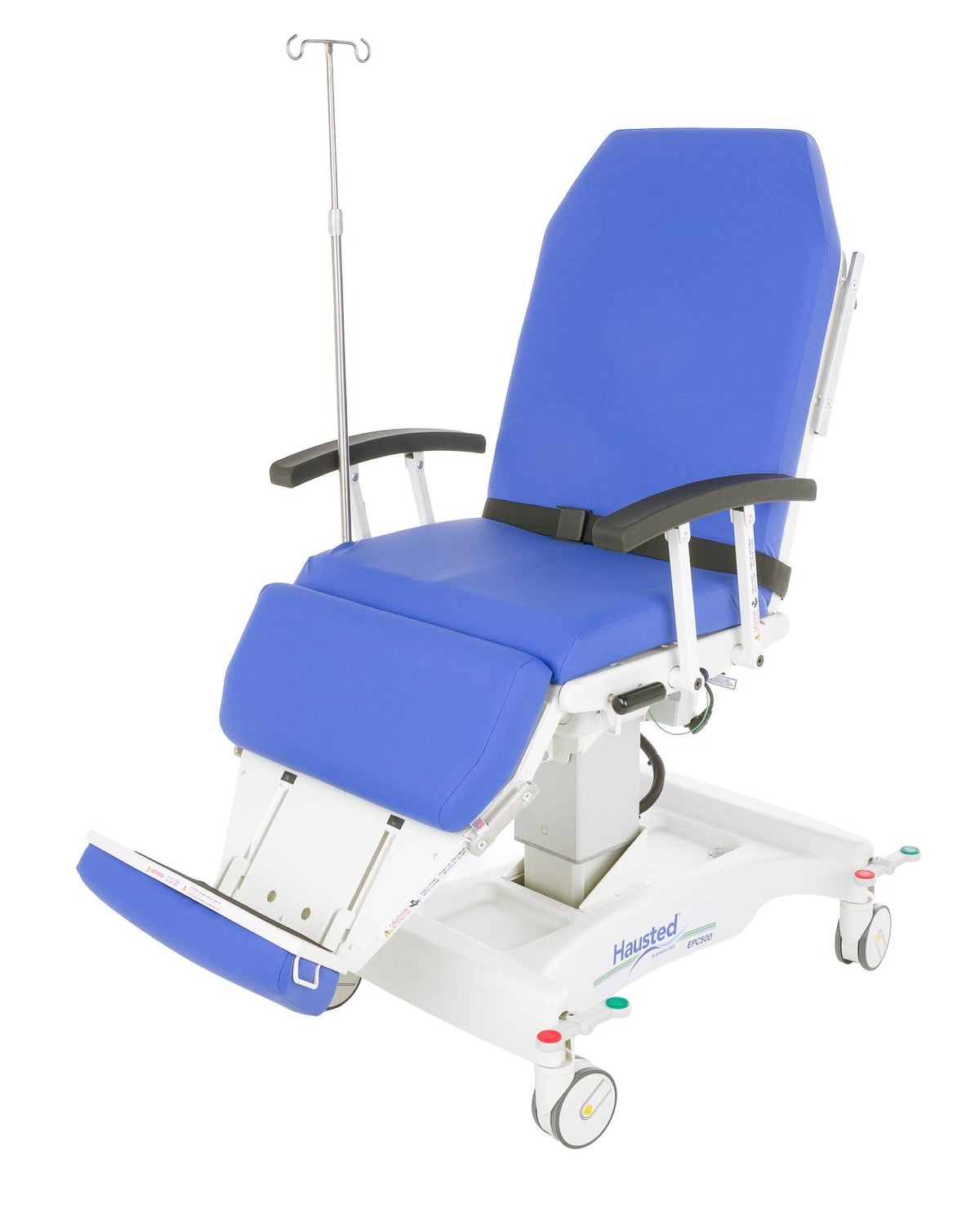

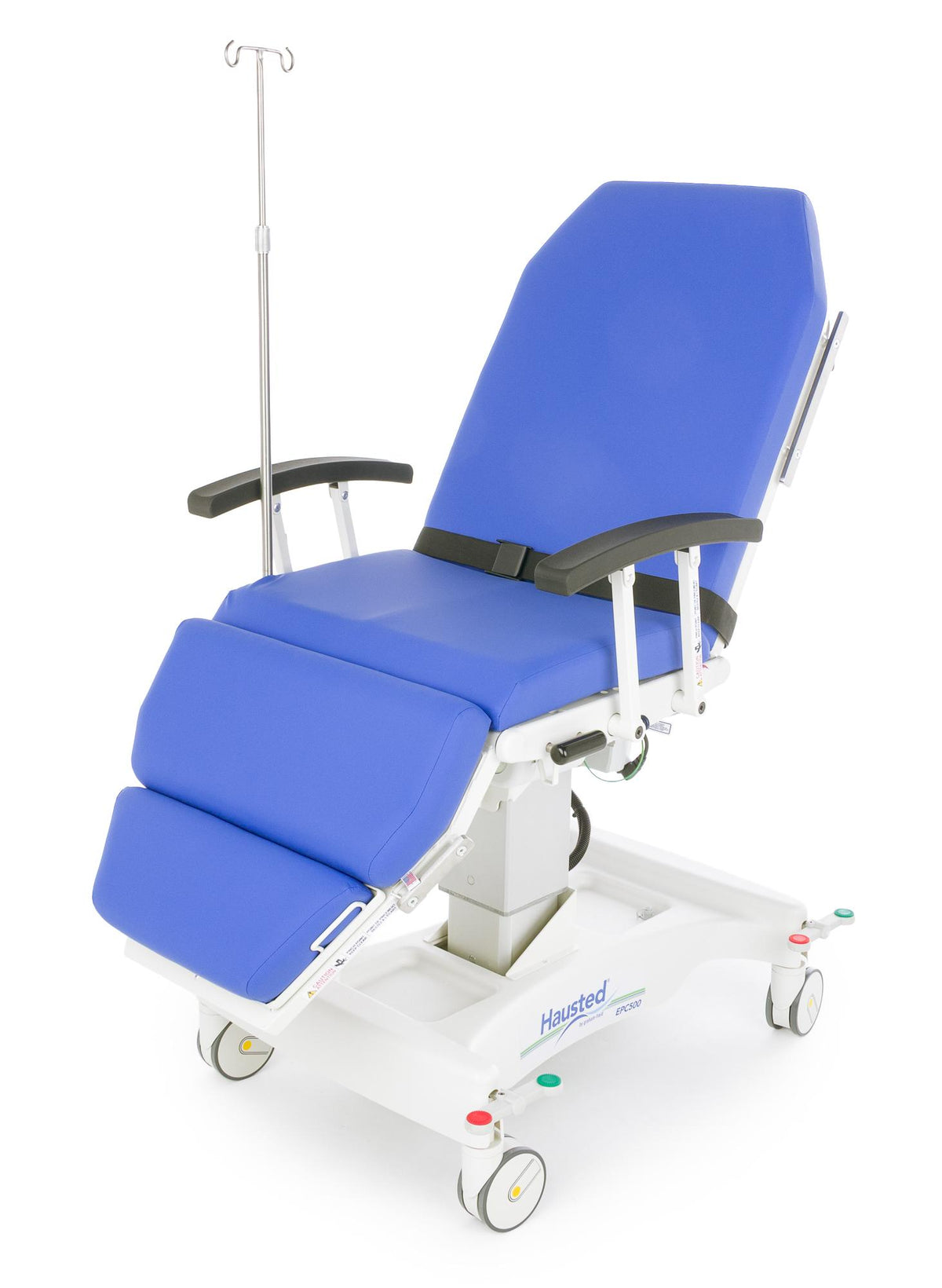

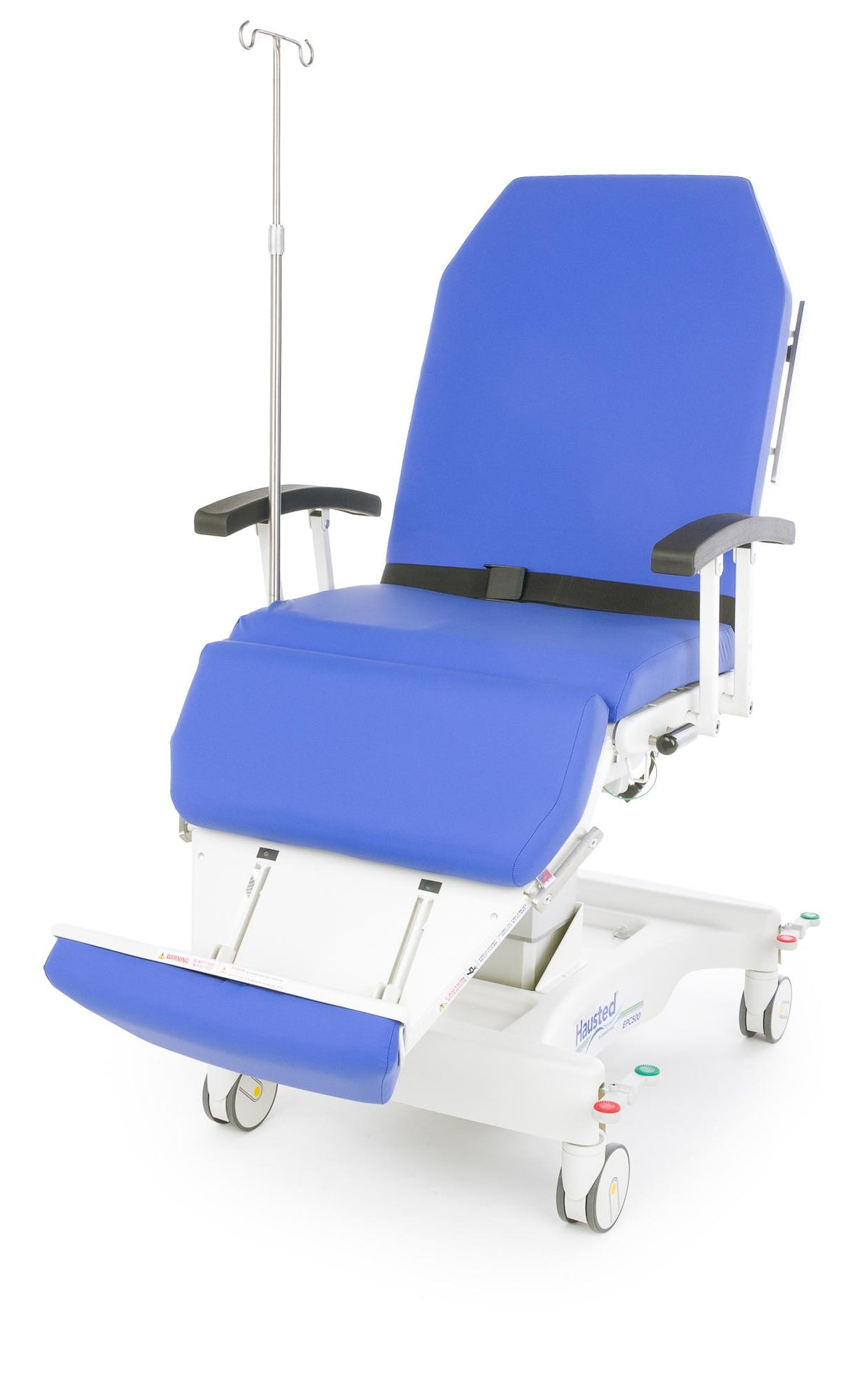

• Standard Accessories Included: Factory-supplied with a telescoping stainless steel IV pole, patient safety restraint strap, and drainage bag clips.

Chassis Choices: Powered Smart Caster Base or Manual Pedal-Lock Base

The EPC500 Series is offered in two mobility configurations tailored to your operatory workflows:

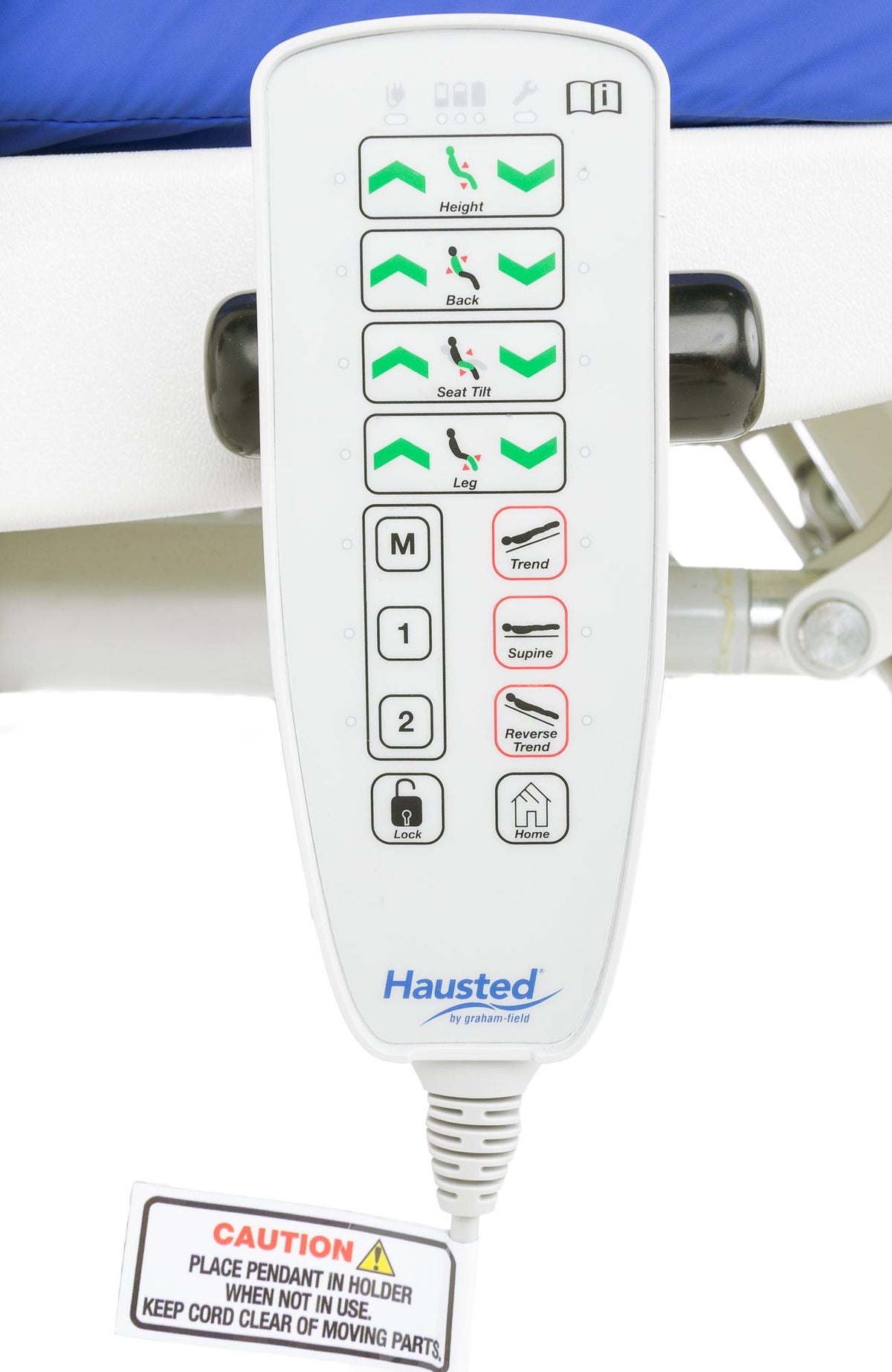

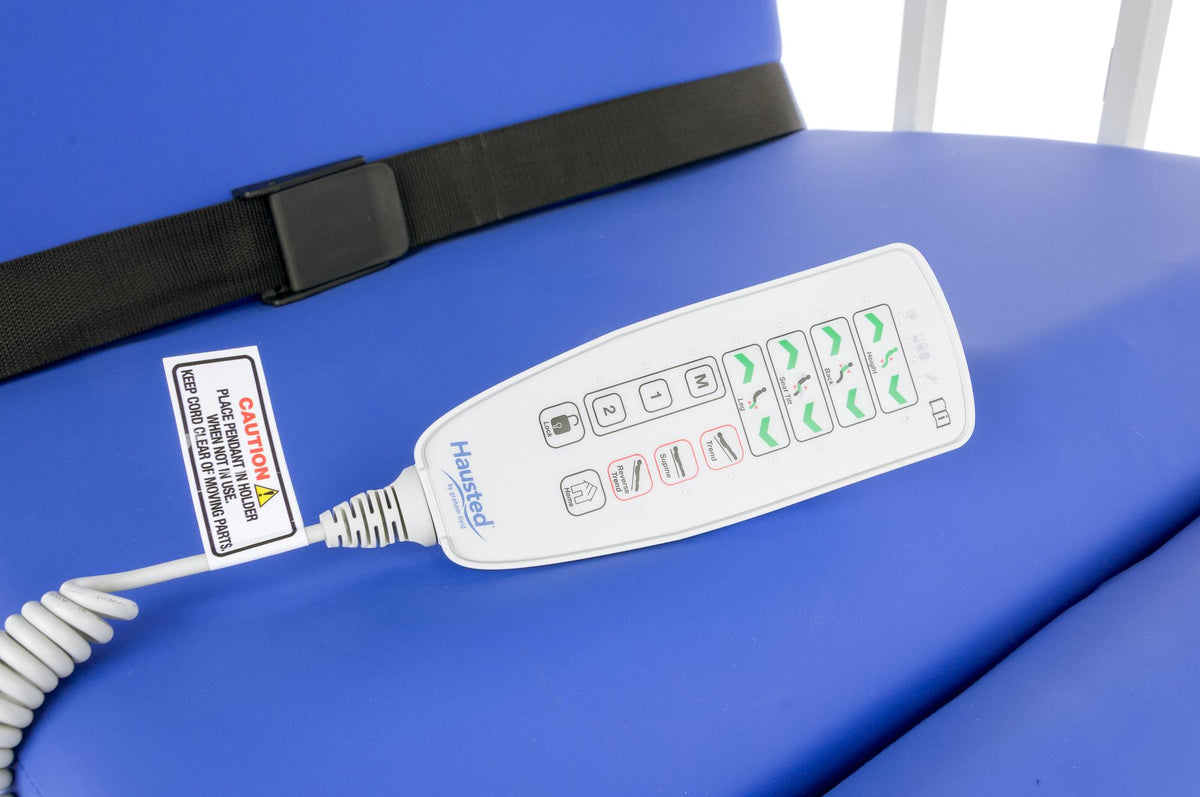

• EPC500ST (Powered Base with Smart Casters): Outfitted with Hausted's Smart Caster Technology, providing automatic electronic braking and powered steering assist operated directly from the comprehensive Pad Control hand pendant (includes 3 programmable memory presets).

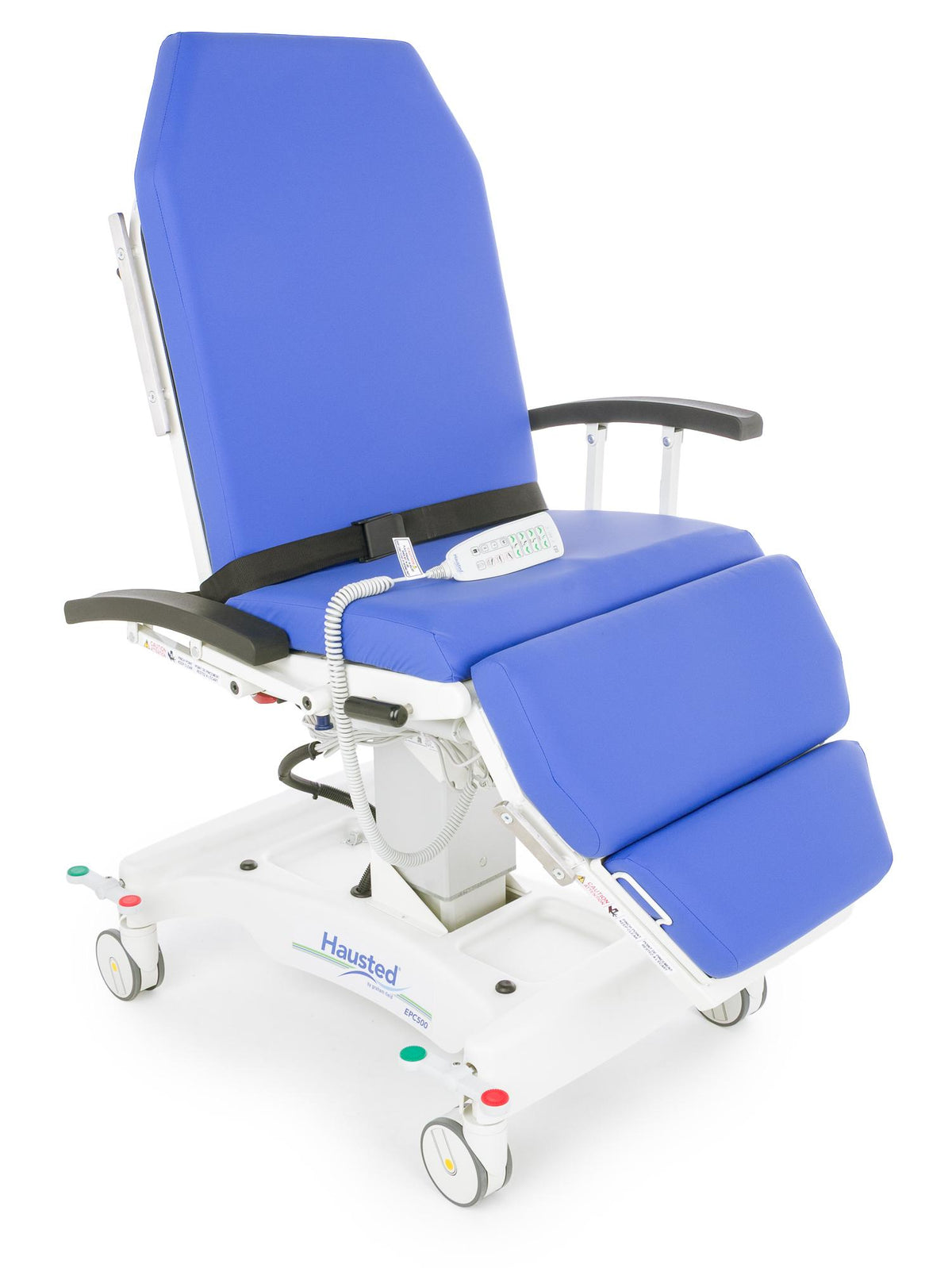

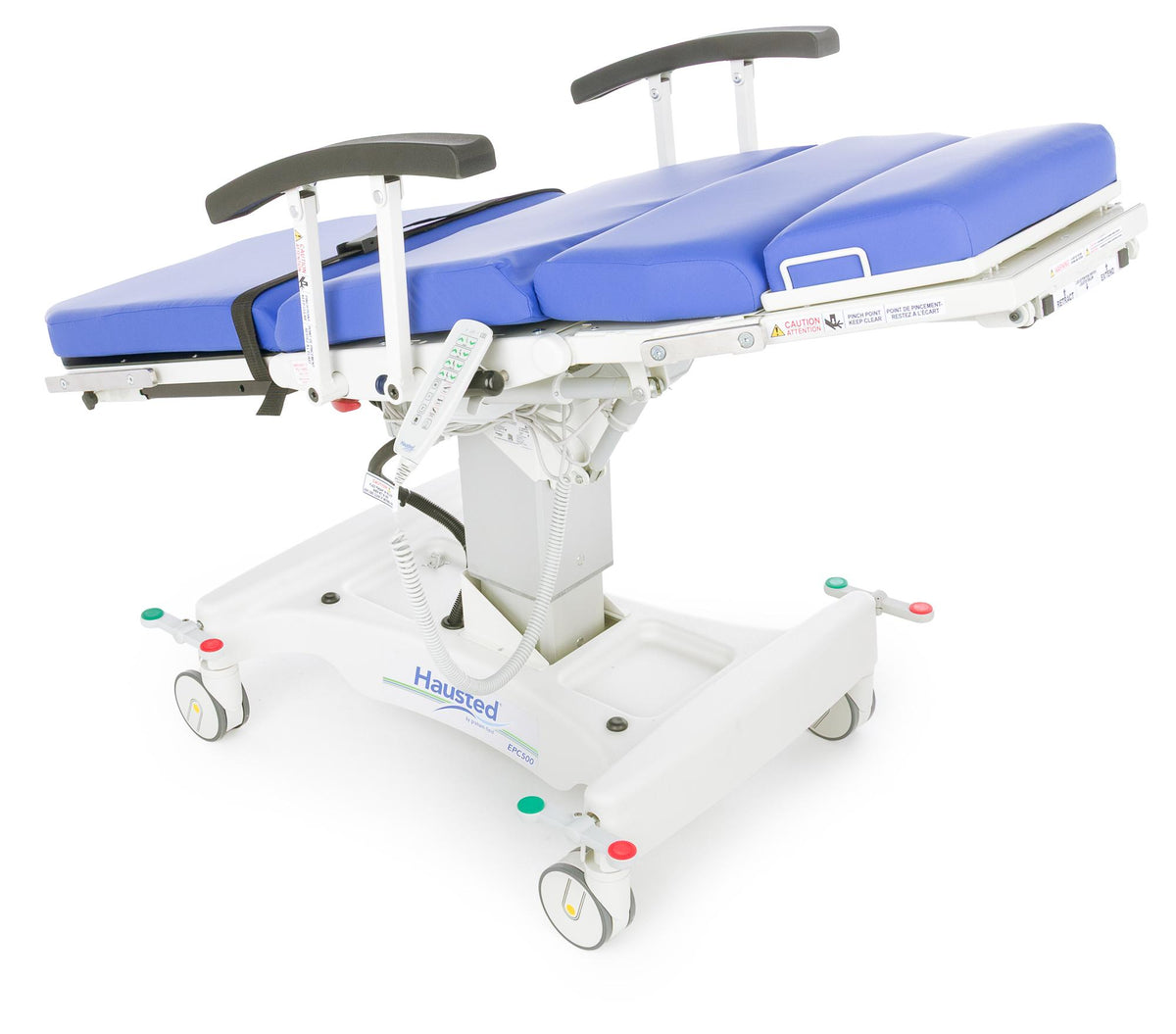

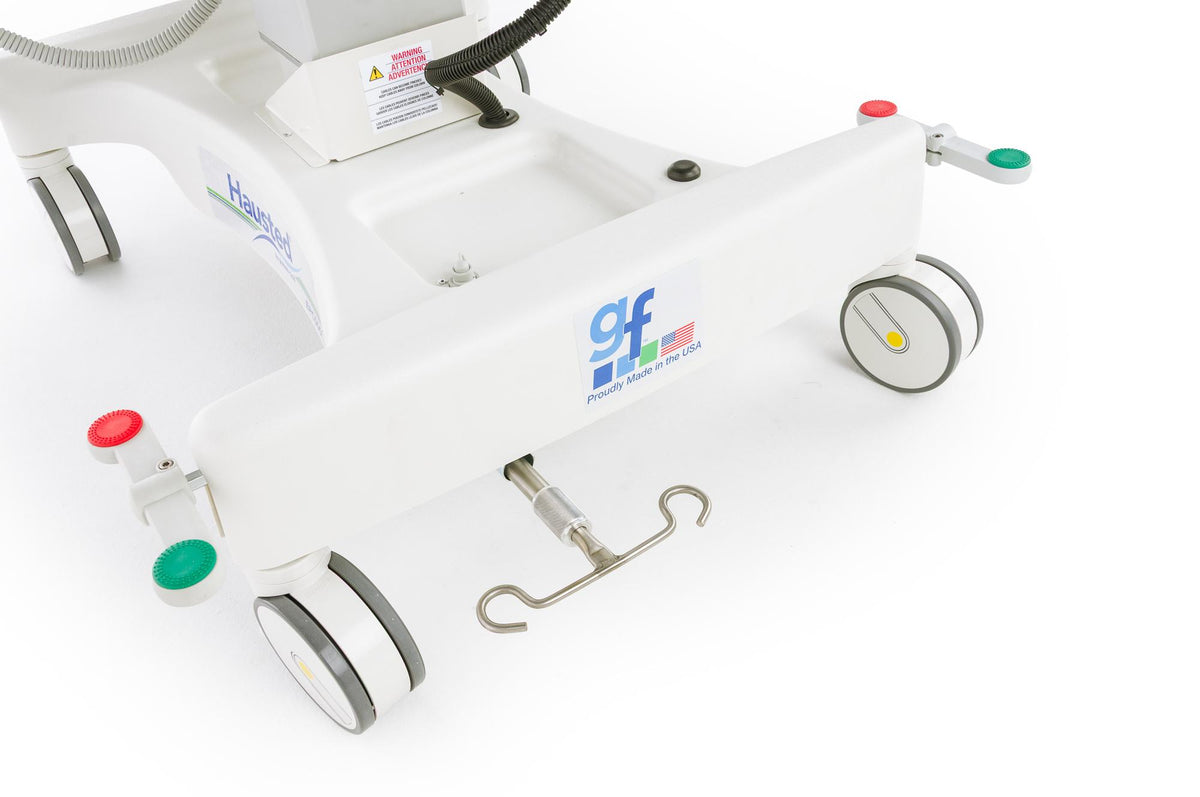

• EPC500ST-MB (Manual Base with Pedal Locks): Features 5-inch (12.7 cm) heavy-duty swivel casters with color-coded foot lock pedals at each corner, controlled via an intuitive hand pendant with 2 programmable memory presets.

Key Features:

• Single Patient Platform: Serves as an exam table, surgical procedure chair, transport stretcher, and recovery lounge.
• Full Radiolucent Back: Clear imaging window allows direct intra-operative C-arm fluoroscopy and X-ray imaging.
• Market-Leading 600 lb Capacity: Heavy-gauge welded tubular steel architecture provides rigid bariatric stability.
• 20" to 40" Height Travel Range: Accessible low-entry height with high procedural elevation for seated or standing surgeons.
• Dura-Gel® Pressure Management Pad: 3-inch multi-density foam pad with visco memory foam and gel insert prevents pressure sores.

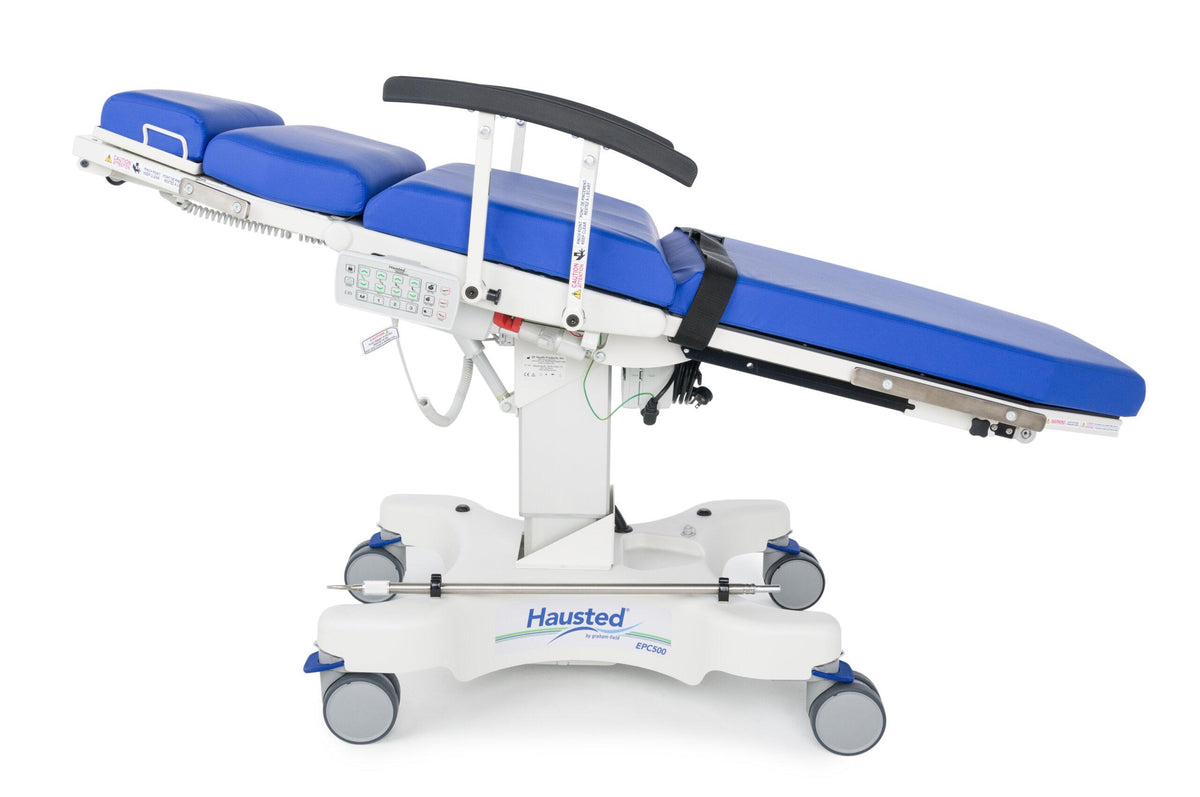

• 15° Trendelenburg & 6° Reverse Trendelenburg: Rapid position adjustments optimize visualization and patient stability.
• CPR Emergency Backrest Drop: Instant manual quick-release lever flattens backrest without waiting for motors.
• Counter-Rotating Side Rails: Drop out of the operative field for wide surgical and transfer clearance.
• Integrated Powered Leg Extension: Extends overall patient surface to 78.5" with 2-position footrest.
• Standard Accessories Included: Factory-fitted with a telescoping IV pole and patient restraint strap.
• Manufacturer Warranty: Backed by a 5-year frame warranty and 1-year electrical/caster warranty.

Technical Specifications:

• Manufacturer: Hausted by Graham-Field
• Series: EPC500 Series Procedure Chair
• Base Models: EPC500ST (Powered Base with Smart Casters) / EPC500ST-MB (Manual Base with Pedal Locks)
• Patient Weight Capacity: 600 lbs (272.2 kg) evenly distributed
• Height Travel Range: 20.0" to 40.0" (50.8 cm to 101.6 cm)
• Overall Width: 32.0" (81.3 cm)
• Overall Length: 83.0" (210.8 cm)
• Patient Surface Width: 26.0" (66.0 cm)
• Patient Surface Length: 70.5" to 78.5" (179.1 cm to 199.4 cm) with leg extension deployed
• Side Rail Dimensions: 18.5" L x 10.25" H (47.0 cm x 26.0 cm)
• Mattress Pad: 3.0" (7.6 cm) multi-density contoured pad with Dura-Gel® insert
• Upholstery Fabric: Primastretch 4-way stretch urethane, fluid-resistant healthcare grade
• Backrest Articulation: 0° to 90° with manual emergency quick-release CPR drop
• Seat Tilt Range: 0° to 15°
• Trendelenburg Angle: 15°
• Reverse Trendelenburg Angle: 6°
• Casters: 5.0" (12.7 cm) heavy-duty swivel casters (Smart Caster or manual pedal lock)
• Electrical Requirements: 110-240 VAC, 50/60 Hz with internal backup lithium-ion battery
• Product Weight: 265 lbs (120.2 kg)
• Shipping Weight: 375 lbs (170.1 kg)
• Shipping Dimensions: 36" W x 72" L x 38" H (91.4 cm x 182.9 cm x 96.5 cm)
• Warranty: 5 years on frame, 1 year on electrical components and casters
