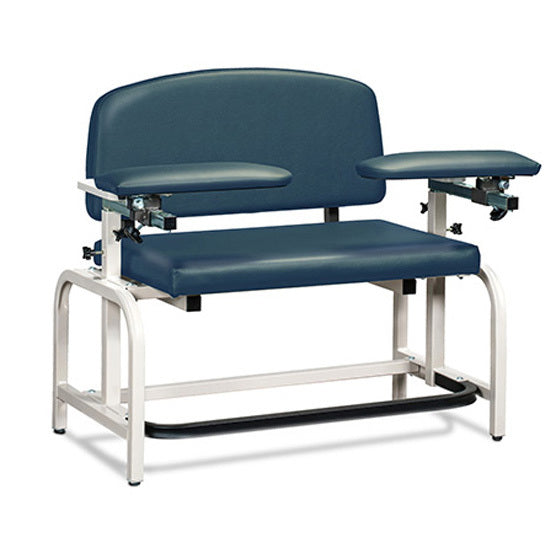

Certified 700 lb Bariatric Stability, Structural Center Support & Expansive Seating Safety

The Clinton Lab X Series Heavy-Duty Bariatric Blood Drawing Chairs are built specifically to provide safe, dignified, and rock-solid phlebotomy seating for larger and bariatric patients across hospital blood collection suites, reference laboratories, and diagnostic centers. Constructed around a heavy-gauge 1-1/4" (3.18 cm) square welded tubular steel frame reinforced with an additional structural steel center support under the seat, this chair is certified to withstand a 700 lb (317.5 kg) patient load under normal clinical use with zero frame deflection. Featuring an expansive 35" wide by 21" deep (88.9 cm x 53.3 cm) seating platform, the 700 lb series ensures stability, preventing any tipping or discomfort during venipuncture.

Dual Padded Flip Arms, Tall Phlebotomist Working Height & Supply Drawer

Engineered for superior patient stabilization and provider ergonomics:

• Heavy-Duty Reinforced Bariatric Frame: 1-1/4" all-welded square steel tubing paired with a heavy-duty under-seat center support and finished in a chip-resistant neutral gray baked powder coating.
• Expansive 35" x 21" Anatomical Cushioning: Generous 2-inch (5.1 cm) thick contoured foam core relieves localized pressure and ensures a secure seating posture.
• Standard 20" or Tall 26" Seat Elevation: Choose between standard 20" (50.8 cm) seating or the elevated 26" (66.0 cm) tall configuration that raises the patient's antecubital fossa to eliminate repetitive lumbar bending for phlebotomists.
• Dual Locking Flip-Arm Accessibility: Flip-up arm mechanisms swing smoothly into place during puncture, then flip completely up and out of the way for safe, barrier-free lateral transfers.
• Dual Star-Knob Adjustability: Smooth vertical and depth adjustments ensure tailored forearm alignment for blood collection on either side.
• Integrated Supply Storage Drawer (Deluxe Models 66002B and 66092B): Factory-fitted with a height-adjustable one-piece all-plastic drawer with an integrated ClintonClean™ prep top to keep vacutainers, needles, and antiseptics immediately organized at arm's reach.
• Industrial Leveling Glides: Heavy-duty threaded levelers ensure rock-solid contact on uneven clinical tile floors.

Available Hardware Configurations:

• Model 66000B (Bariatric Regular Height - 20"): 35" x 21" seat, 20" seat height, dual padded flip arms, 700 lb capacity.
• Model 66002B (Bariatric Regular Height with Drawer - 20"): 35" x 21" seat, 20" seat height, 1 padded flip arm, and 1 plastic supply drawer with ClintonClean™ work surface.
• Model 66099B (Bariatric Tall Height - 26"): 35" x 21" seat, 26" elevated seat height to minimize phlebotomist bending, dual padded flip arms, 700 lb capacity.
• Model 66092B (Bariatric Tall Height with Drawer - 26"): 35" x 21" seat, 26" elevated seat height, 1 padded flip arm, and 1 plastic supply drawer with ClintonClean™ work surface.

Technical Specifications:

• Manufacturer: Clinton Industries, Inc.
• Series: Lab X Series Heavy-Duty Bariatric Blood Drawing Chairs
• Patient Weight Capacity: 700 lbs (317.5 kg) evenly distributed under normal clinical use
• Seat Dimensions (W x D): 35.0" x 21.0" (88.9 cm x 53.3 cm)
• Seat Height (from Floor): 20.0" (50.8 cm) on regular models / 26.0" (66.0 cm) on tall models
• Overall Width: 46.0" (116.8 cm)
• Overall Depth: 29.0" (73.7 cm)
• Overall Height: 36.0" (91.4 cm) on 20" models / 42.5" (108.0 cm) on 26" models
• Armrest Height Travel Range: 27" to 33" (68.6 to 83.8 cm) on 20" models / 33" to 39" (83.8 to 99.1 cm) on 26" models
• Armrest Vertical Travel Range: 6.0" (15.2 cm)
• Cushion Thickness: 2.0" (5.1 cm) contoured high-resilience foam on seat and backrest
• Upholstery Fabric: Heavy-duty, stain-resistant healthcare vinyl
• Frame Finish: Neutral Gray baked powder coating on 1-1/4" square tubular steel with center support
• Upholstery Palette: 9 commercial healthcare vinyl colors
• Warranty: 5-year limited manufacturer warranty
