Multi-Provider Ergonomics, Cordless Hydraulic Elevation & 6° Anti-Syncope Postural Positioning

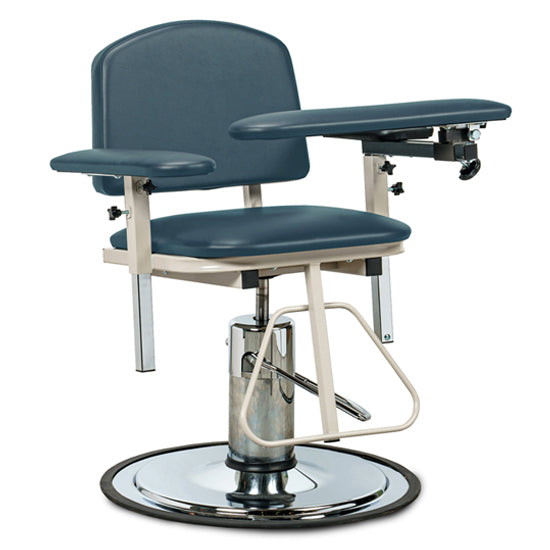

The Clinton H-Series Hydraulic Blood Drawing Chairs bridge the operational gap between rigid fixed-height workstations and costly motorized procedure furniture. Purpose-engineered for shared blood collection bays, diagnostic hospital suites, outpatient clinics, and blood donation centers where phlebotomists of varying statures rotate through the same draw room, the H-Series provides seamless vertical adaptation. Operated entirely by a heavy-duty, self-contained foot pump cylinder, it raises and lowers seat elevation continuously from 20.25" to 27.50" (51.4 cm to 69.9 cm), bringing the patient's antecubital fossa to an optimal working posture without cord tripping hazards or battery charging routines.

6° Rearward Safety Tilt, Polished Chrome Base & Turnkey Supply Storage

Built to optimize needle alignment accuracy and patient physical stability during venipuncture:

• Cordless Foot-Operated Hydraulic Pump: Fluid-smooth foot pedal allows practitioners to dial in chair height hands-free, preserving sterile techniques while eliminating floor cords in busy draw bays.
• 6° Rearward Sloped Anatomical Seat: Built-in 6° backward pitch naturally settles the patient's pelvis against the backrest, preventing forward sliding and reducing fall risks if the patient experiences lightheadedness, vertigo, or vasovagal syncope.
• Heavy-Duty Polished Chrome Circular Base: 24-inch (61.0 cm) round polished chrome baseplate provides a low center of gravity, rock-solid perimeter stability, and an easy-to-sanitize threshold free of protruding chair legs.
• Hinged Flip-Up Armrest (Flip-Arm): Padded armrest smoothly flips backward out of the way for rapid, unhindered patient ingress and lateral boarding, then locks solidly in place for antecubital vein stabilization.
• Dual Star-Knob Arm Travel: Smooth vertical travel (6" / 15.2 cm range) and horizontal depth adjustments allow caregivers to position the patient's forearm with precision.
• Integrated Supply Storage Drawer (Model 6320): Height-adjustable one-piece all-plastic drawer topped with a non-porous ClintonClean™ prep surface keeps vacutainer tubes, needles, and antiseptic prep wipes organized at arm's reach.
• Expansive 21-Inch Seating: Contoured 2-inch (5.1 cm) high-resilience foam core upholstered in durable healthcare-grade vinyl that withstands routine terminal wipe-downs with hospital disinfectants.

Available Hardware Configurations:

• Model 6310 (Standard Hydraulic Padded): 21" padded seat, hydraulic foot-pump travel from 20.25" to 27.50", padded flip arm and stationary armrest, 300 lb capacity.
• Model 6320 (Deluxe Hydraulic Padded with Drawer): 21" padded seat, hydraulic foot-pump travel from 20.25" to 27.50", padded flip arm, and height-adjustable plastic supply drawer with ClintonClean™ work surface.

Technical Specifications:

• Manufacturer: Clinton Industries, Inc.
• Series: H-Series Hydraulic Height-Adjustable Blood Drawing Chairs
• Model SKUs: 6310, 6320
• Patient Weight Capacity: 300 lbs (136.1 kg) under normal clinical use
• Floor-to-Seat Height Range: 20.25" to 27.50" (51.4 cm to 69.9 cm)
• Hydraulic Elevation Travel: 7.25" (18.4 cm) continuous vertical stroke
• Seat Dimensions (W x D): 21.0" x 18.5" (53.3 cm x 47.0 cm)
• Seat Pitch: 6° rearward slope for syncope mitigation and pelvic support
• Overall Width: 30.0" (76.2 cm) without drawer / 39.0" (99.1 cm) with drawer
• Overall Depth: 27.0" (68.6 cm)
• Chrome Base Diameter: 24.0" (61.0 cm) heavy-gauge circular steel base
• Armrest Vertical Travel Range: 6.0" (15.2 cm) independent adjustment
• Cushion Thickness: 2.0" (5.1 cm) contoured high-resilience foam on seat and backrest
• Upholstery Fabric: Heavy-duty, stain-resistant healthcare vinyl
• Upholstery Palette: 9 commercial healthcare vinyl colors
• Warranty: 5-year limited manufacturer warranty
