3-in-1 Portable Wheelchair Scale with Fold-Up Seat & Handrail | 1,000 lb Capacity

List Price / MSRP Institutional pricing and volume discounts available via quote.
$7,912.67 CAD
SKU: 6570-C

Hospitals & Public Institutions: Institutional billing available. Request a quote to pay via Purchase Order (PO) and access Net-30 terms.
Request a Professional Quote
Wifi Option

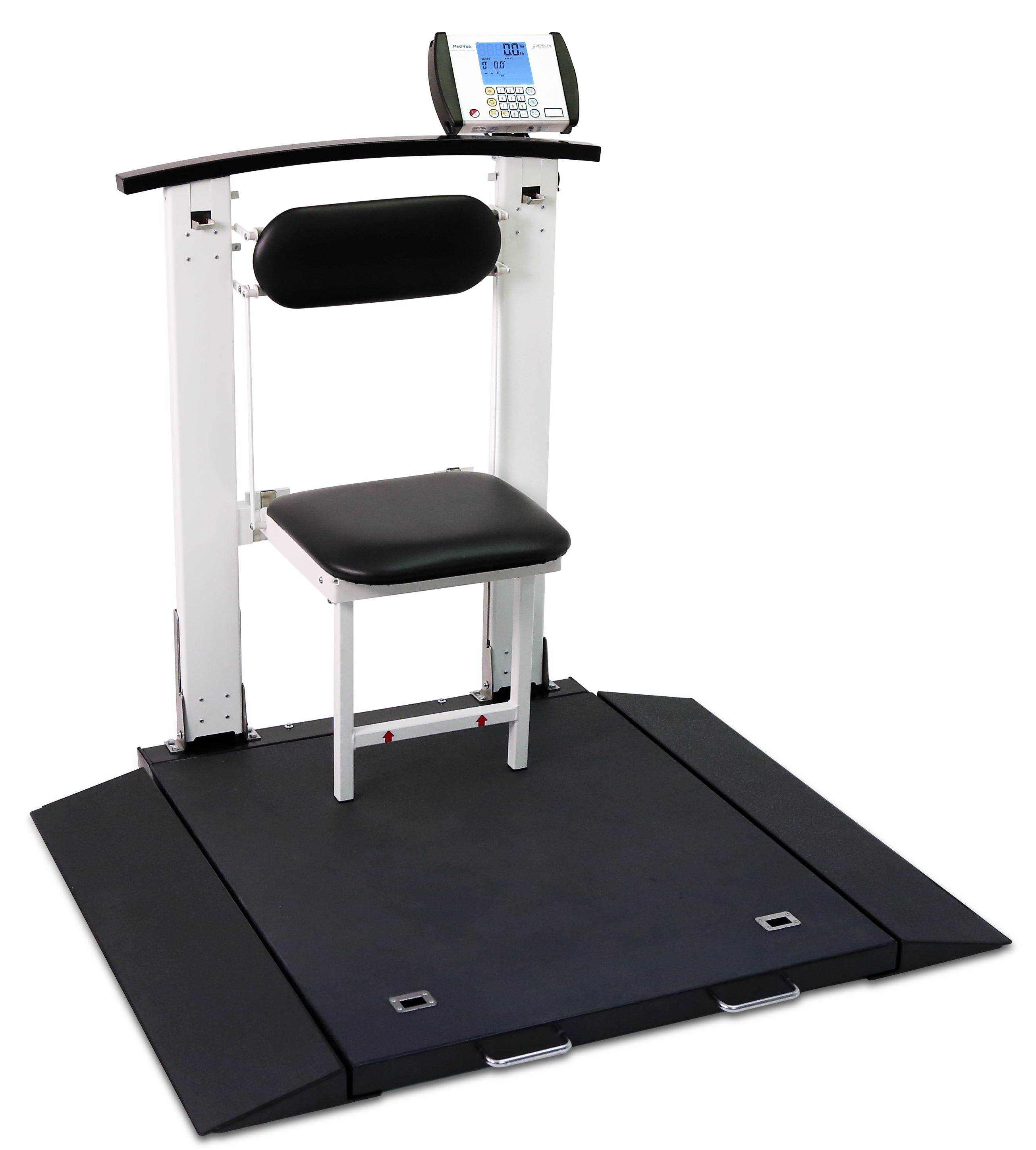

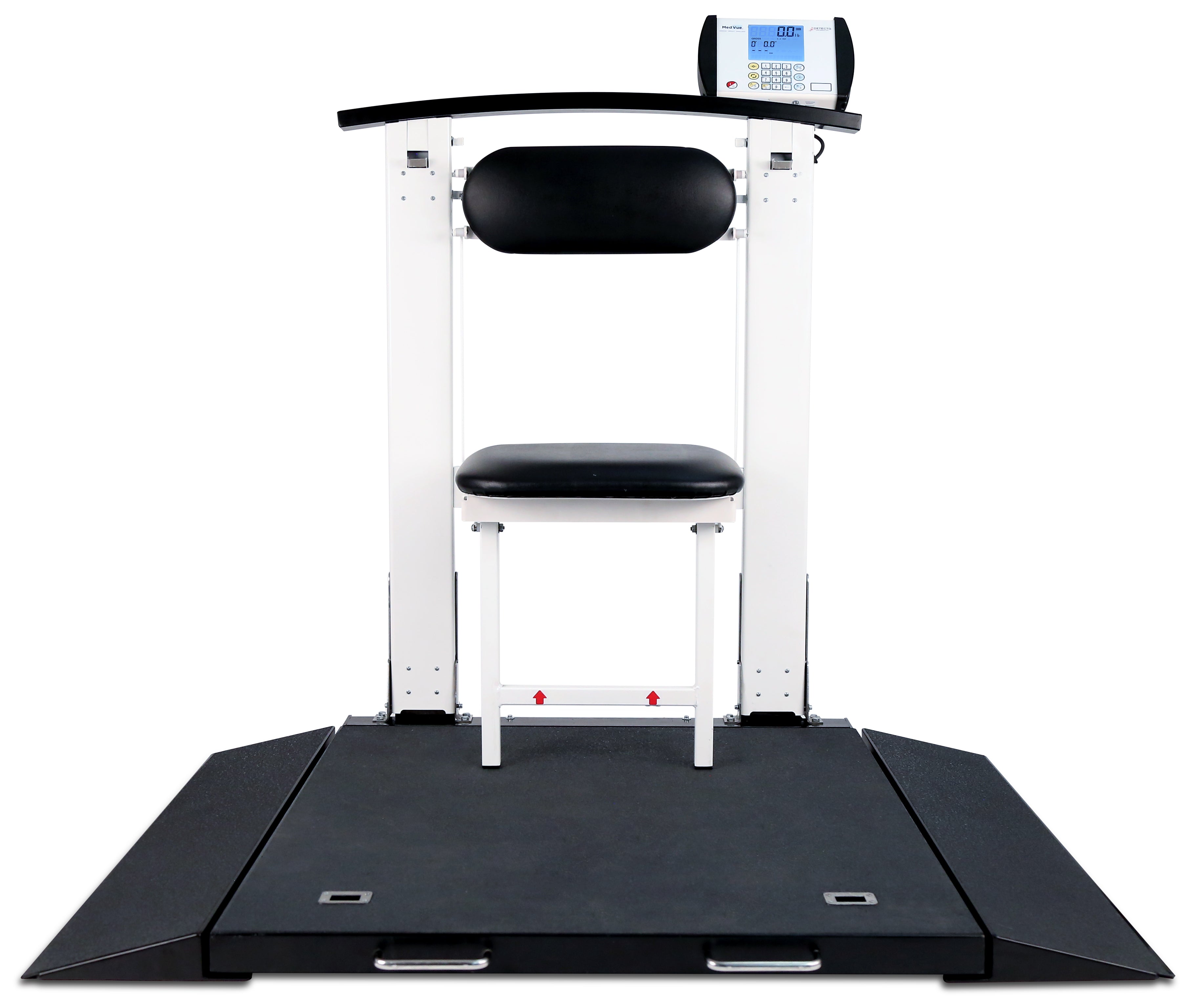

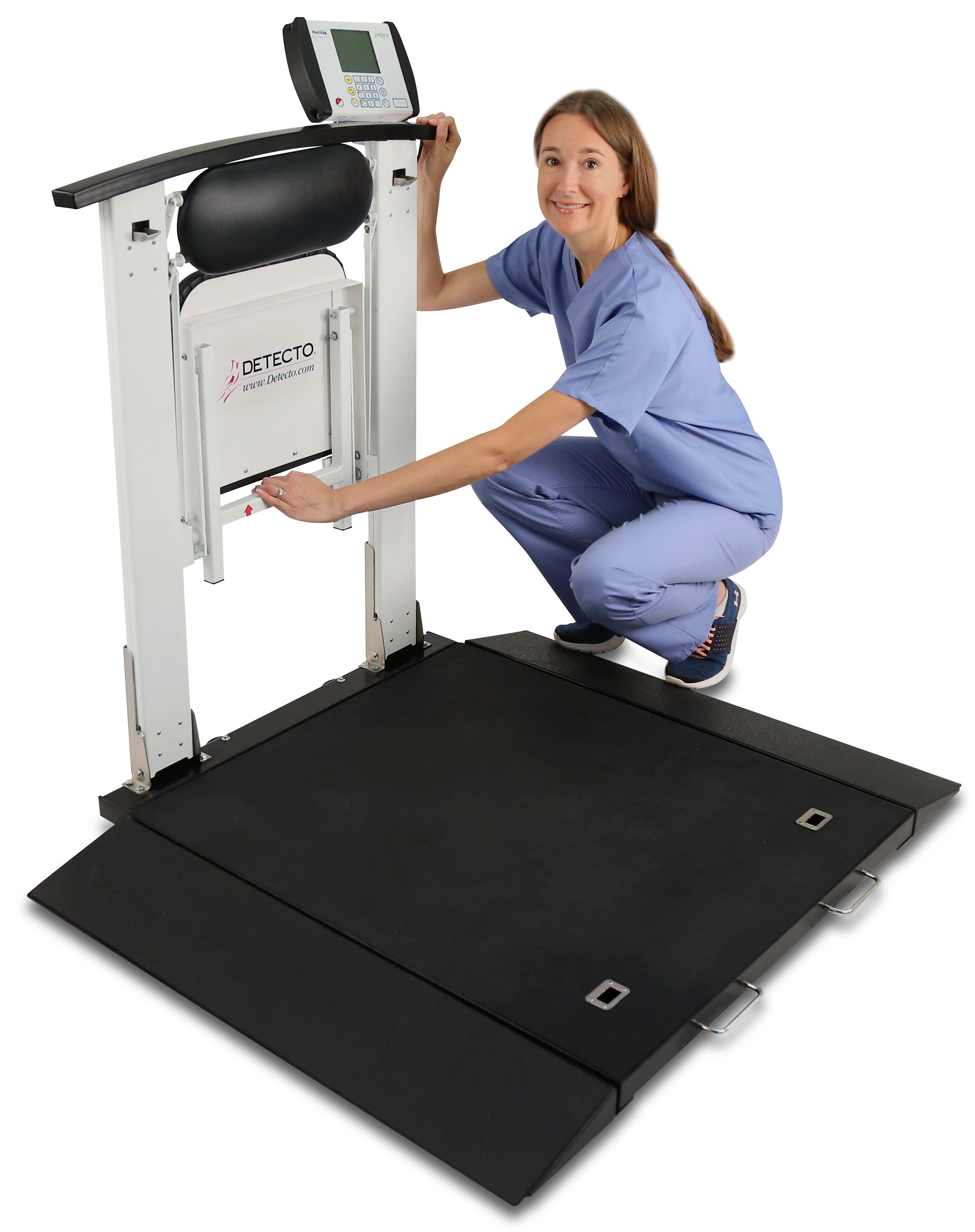

The Ultimate Multi-Functional Weighing Solution Versatility is key in modern healthcare, and the Detecto 6570 delivers just that. This 3-in-1 portable scale is designed to accommodate every patient type: those in wheelchairs, those who prefer to sit, and those who can stand. The integrated fold-up seat allows frail or unstable patients to be weighed comfortably while seated, then simply folds up to clear the platform for standing patients or wheelchairs.

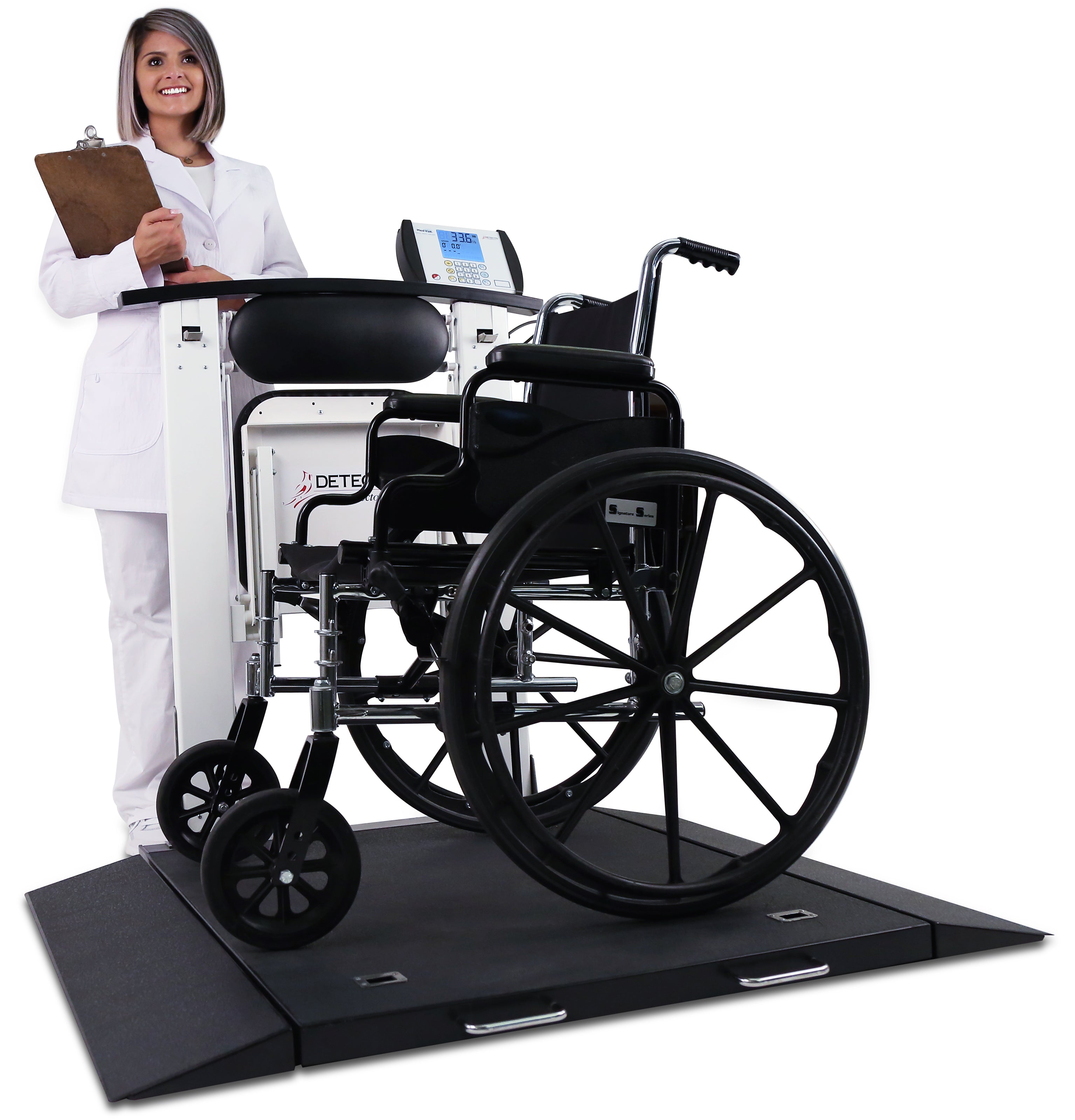

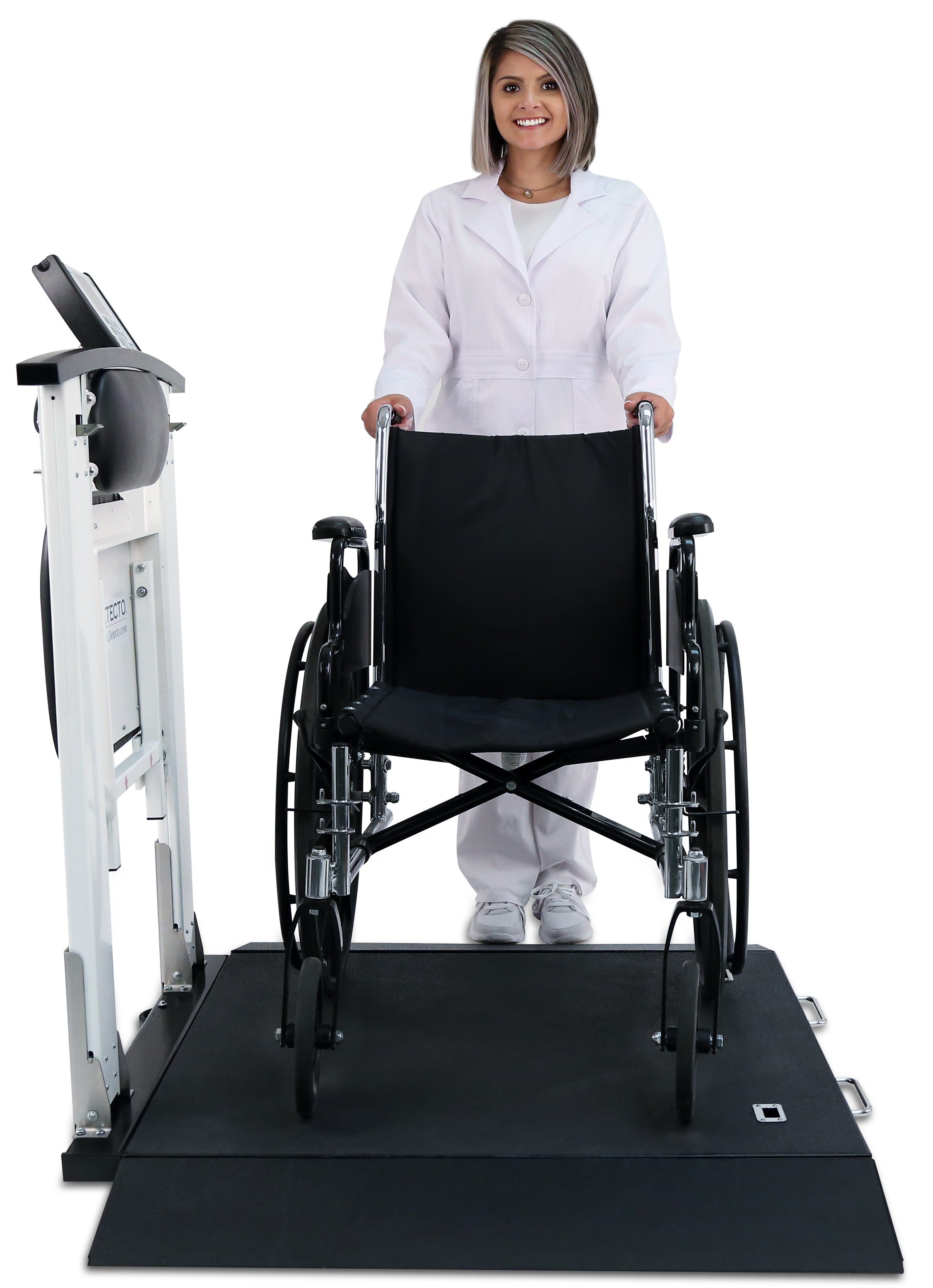

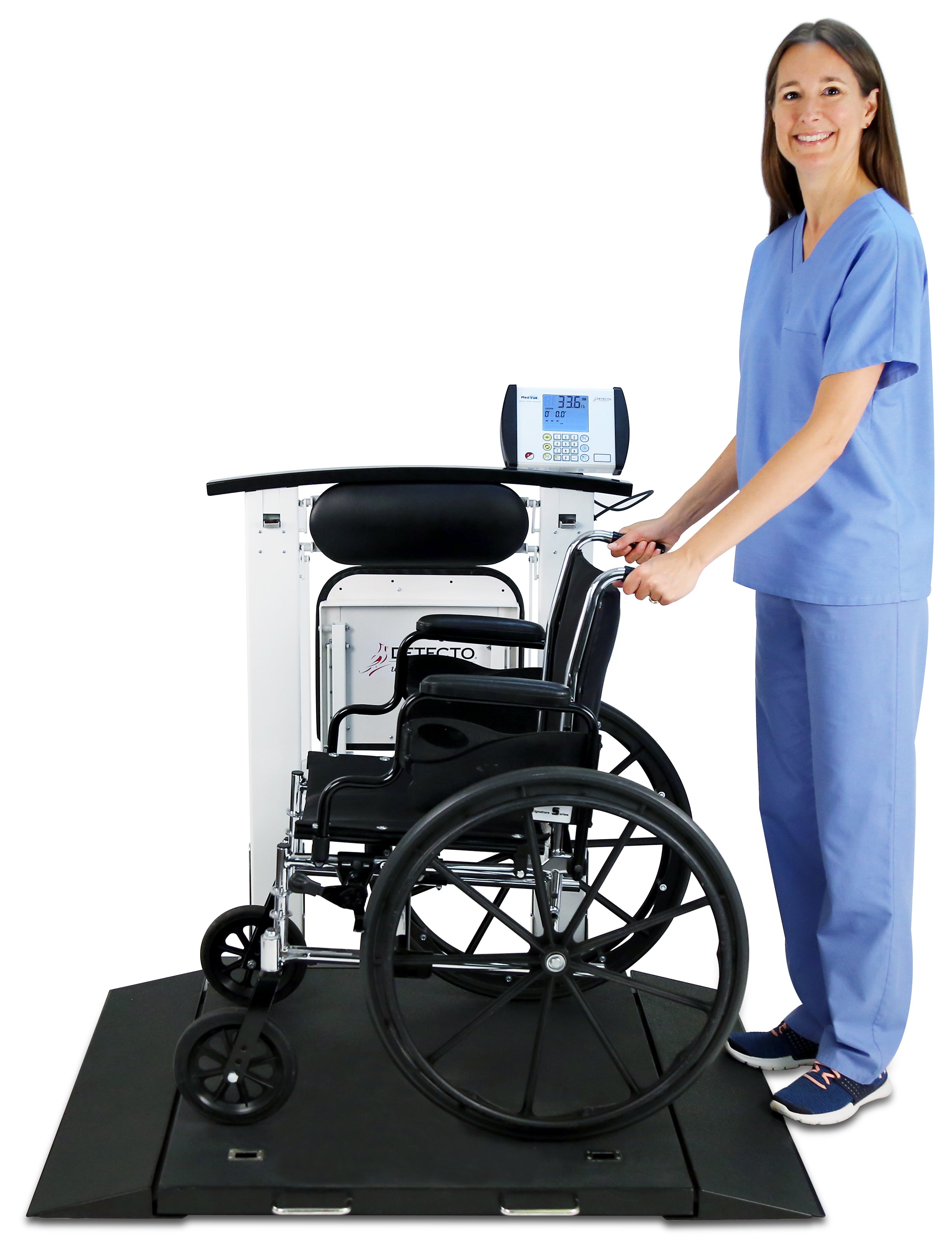

Designed for Safety and Stability Patient security is paramount. The elegant, curved handrail offers robust support for standing patients, while the low-profile platform (just 2.2 inches / 56 mm high) ensures easy access. The scale features dual-way ramps that rest flat on the floor, allowing smooth entry for standard and bariatric wheelchairs from either side.

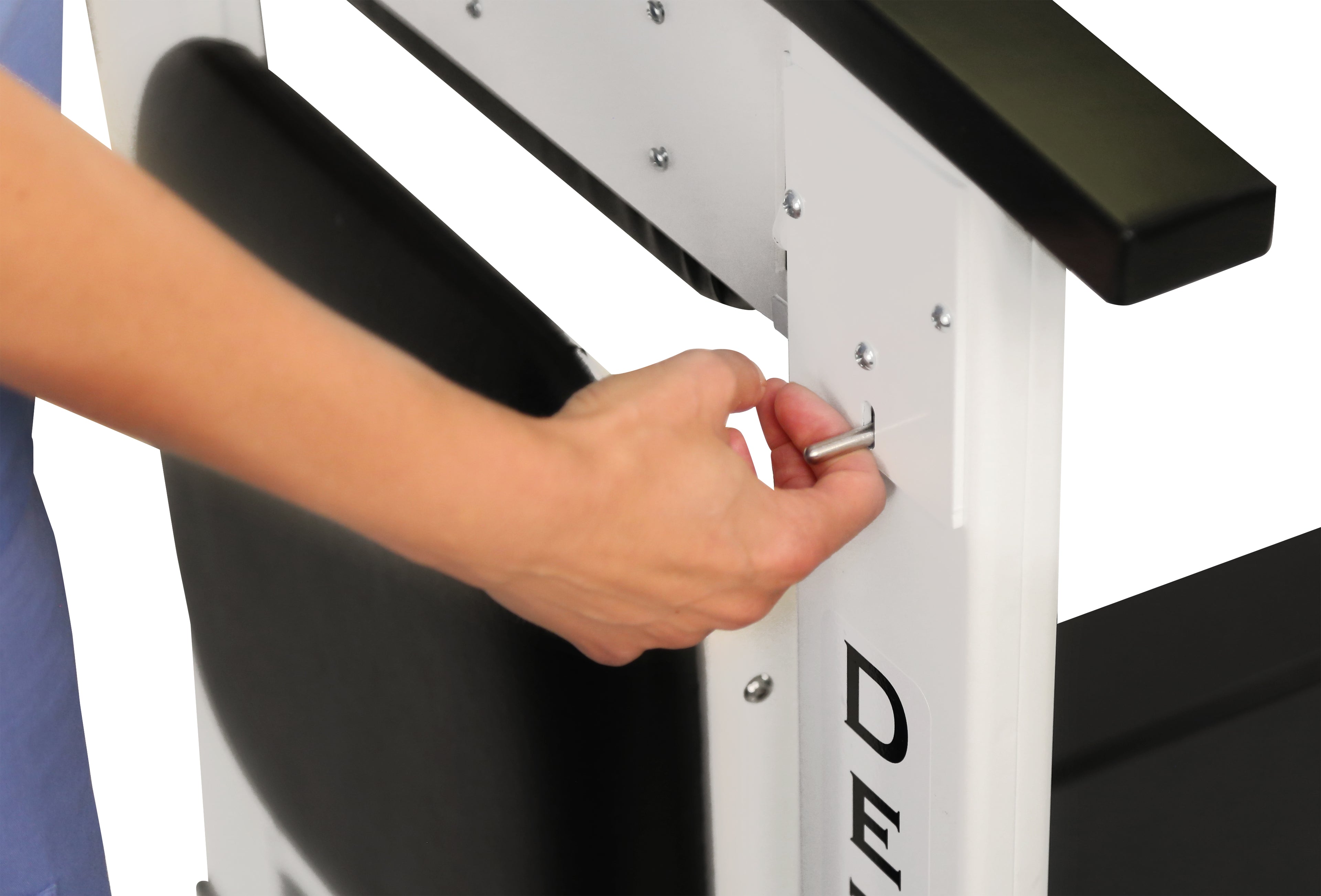

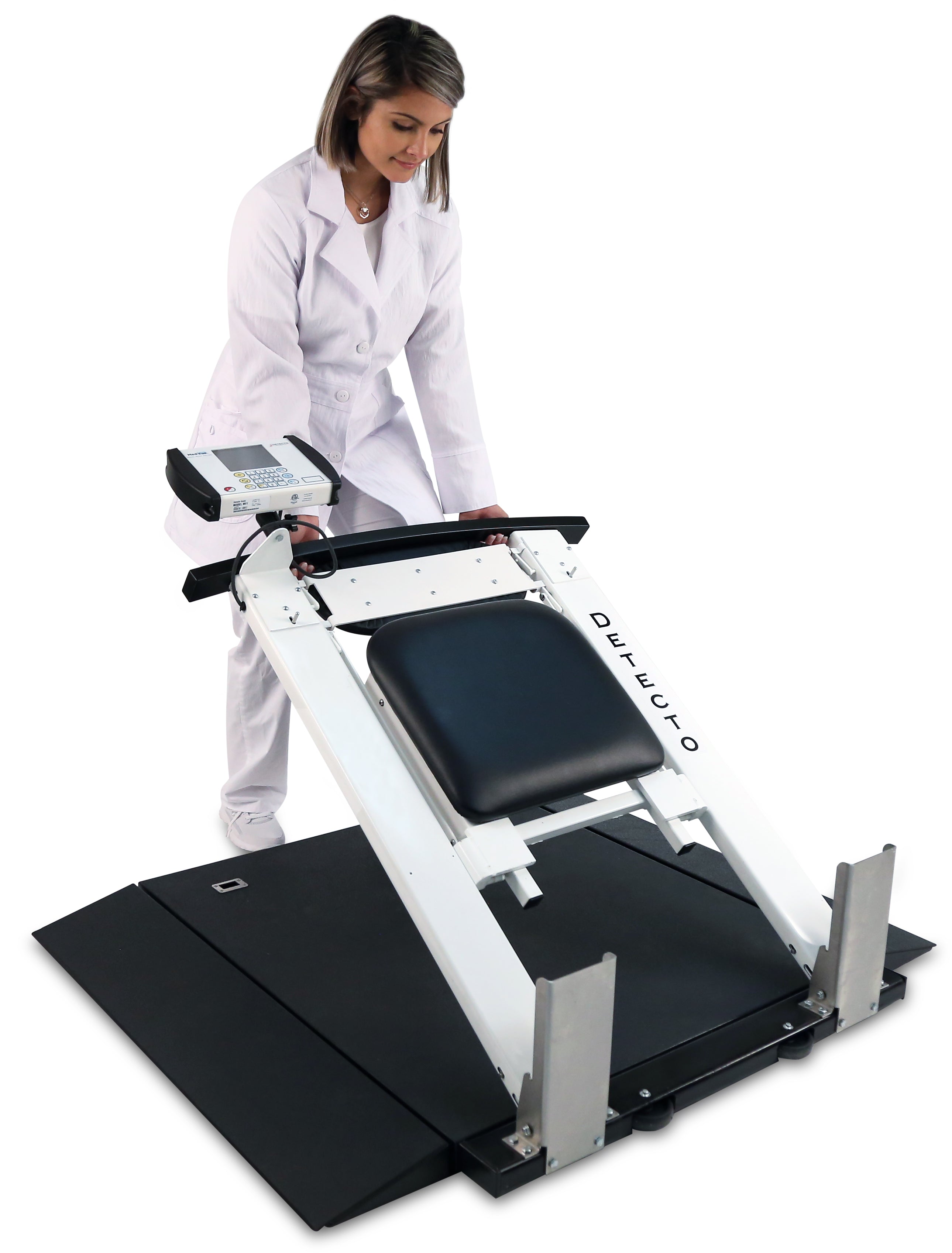

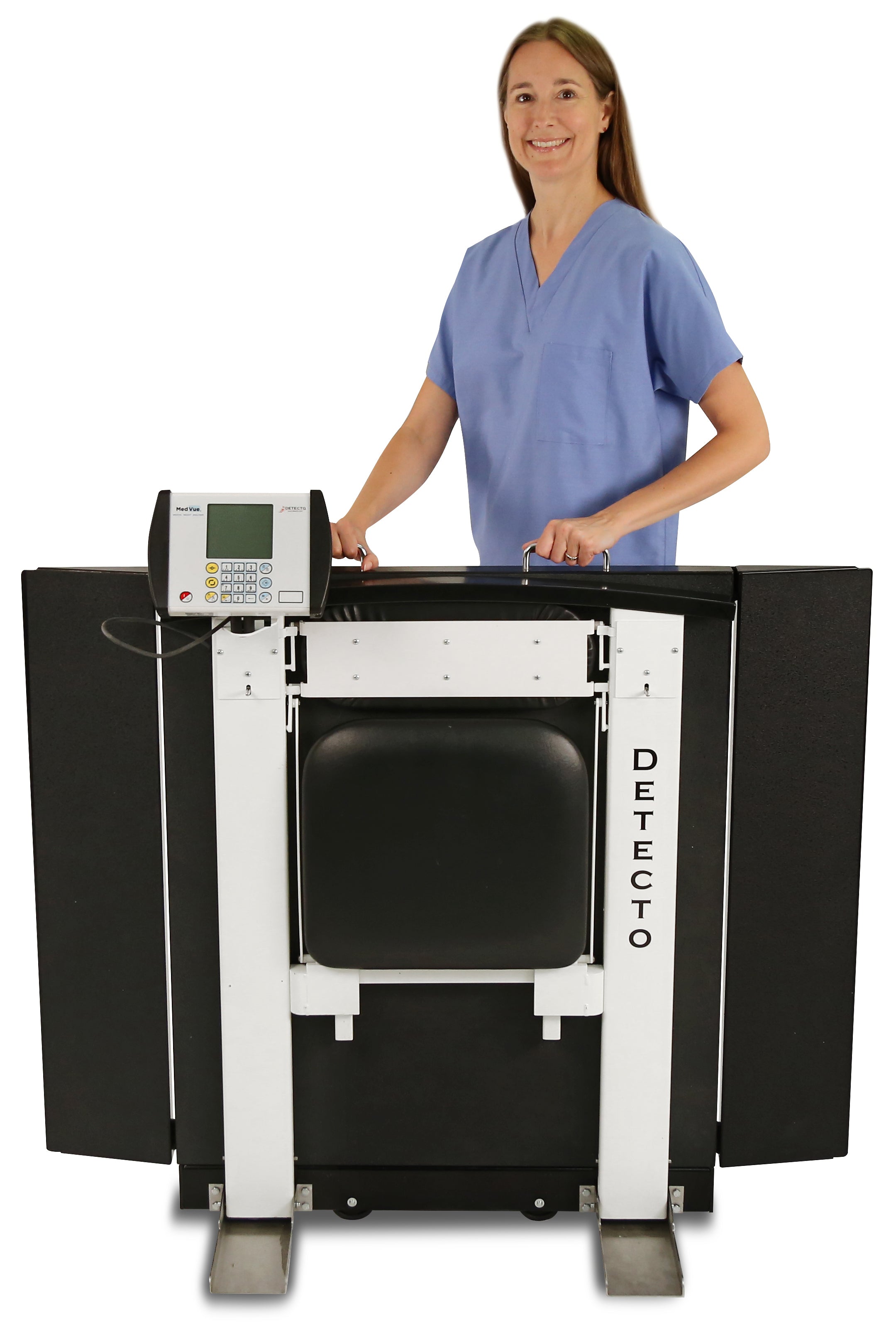

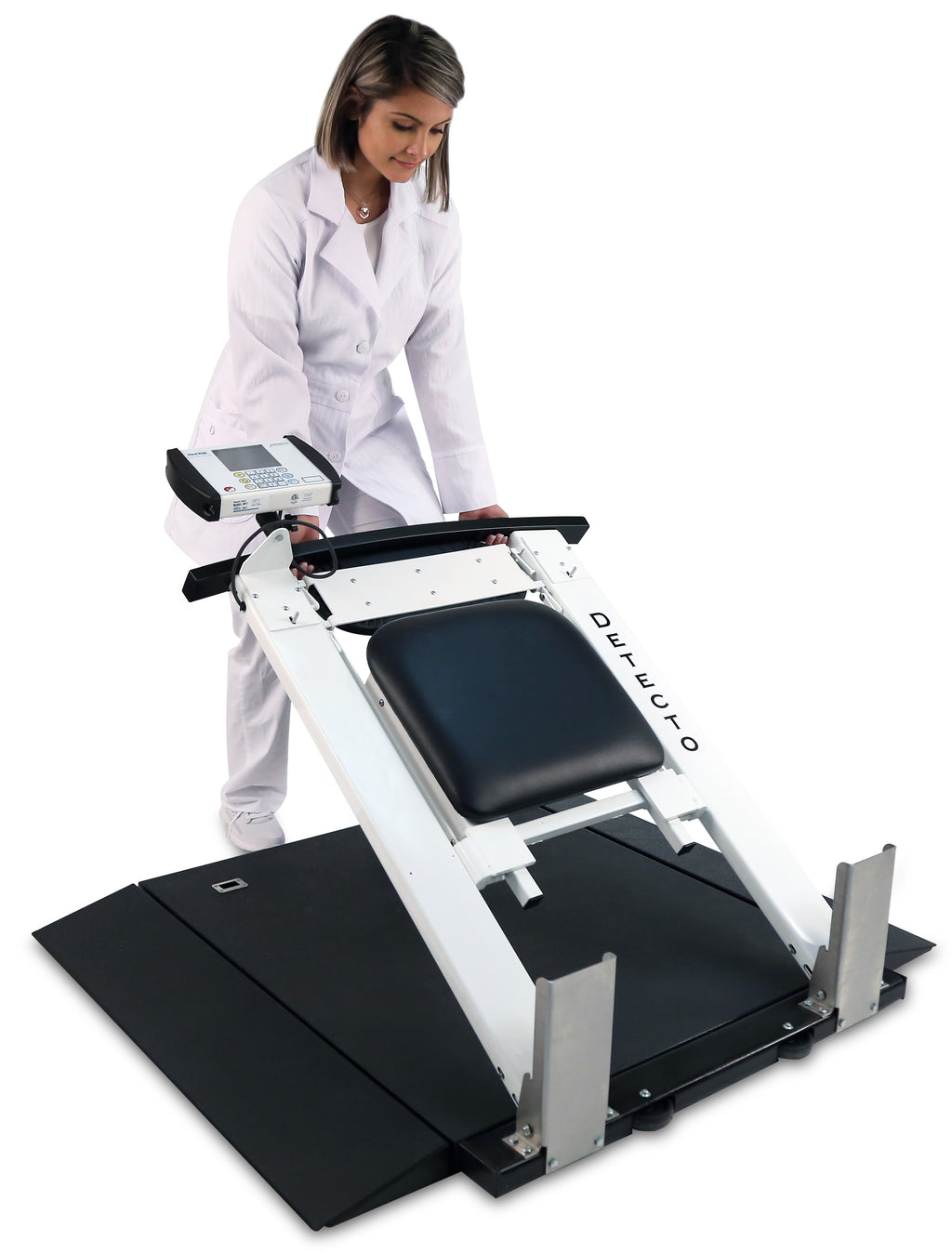

Portable & Space-Efficient Despite its robust features, this scale is designed for mobility. The collapsible column folds down quickly with release levers, and the unit can be tipped up and rolled on its integral wheels for vertical storage. This makes it an excellent choice for multi-purpose rooms or facilities with limited floor space.

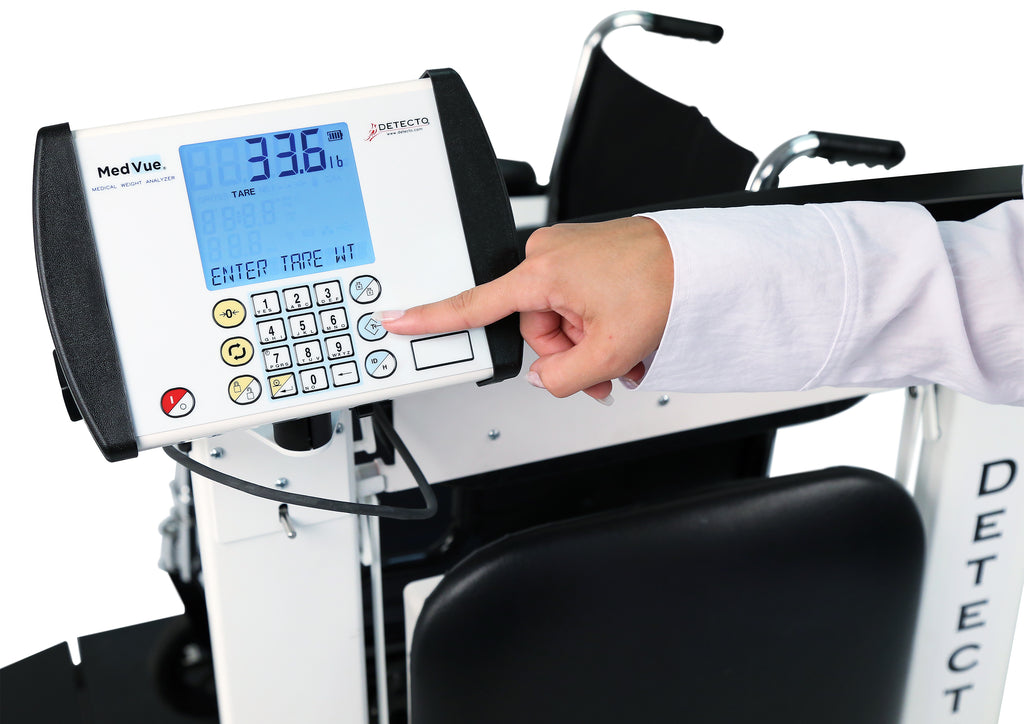

Digital Precision & EMR Connectivity Equipped with a high-contrast, backlit blue LCD, the digital indicator ensures clear readings in any environment. It is EMR/EHR ready with standard USB and RS232 serial ports (Wi-Fi/Bluetooth/Ethernet optional), enabling seamless data transfer to your medical records. The keypad features a dedicated BMI mode and allows for the storage of up to 99 tare weights, making it easy to subtract wheelchair weights instantly.

Key Features:

  • 3-in-1 Versatility: Weighs patients standing, seated (via fold-down seat), or in a wheelchair.

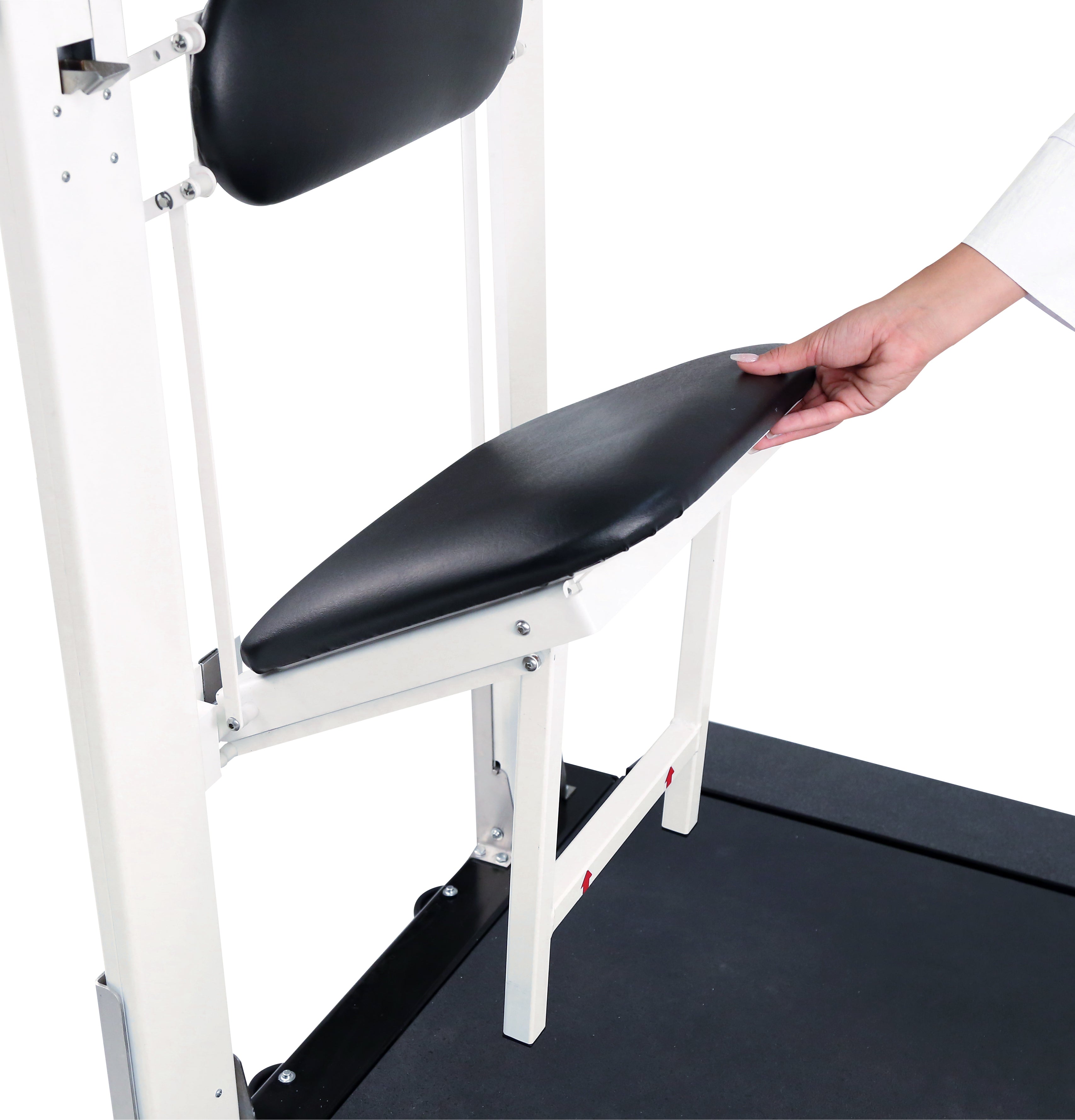

  • Fold-Up Seat: Sturdy built-in seat (800 lb capacity) folds away when not in use.
  • High Capacity: Platform supports up to 1,000 lb / 450 kg with clinical accuracy.
  • Easy Transport: Column collapses for vertical rolling storage on built-in wheels.
  • EMR Ready: Standard USB and RS232 connectivity for digital record keeping.
  • Smart Tare: Keypad and pushbutton tare options to easily remove wheelchair weight.

Specifications:

  • Platform Dimensions: 32 in x 36 in / 81 cm x 91 cm
  • Seat Capacity: 800 lb / 360 kg
  • Platform Capacity: 1,000 lb / 450 kg
  • Power: AC Adapter (included) or 6 C batteries (not included)
  • Display: 3.5" x 3" Backlit Blue LCD
  • Certifications: NTEP and OIML certified for medical dosing accuracy
Available upgrades

For information on all available upgrades, custom modifications, and detailed pricing, please contact our team directly. We will work with you to configure this unit to your exact needs.

Any standard factory upgrades for this model are noted below for your reference.

Contact

Specifications

SKU 6570-C
Manufacturer Detecto
Certification NTEP and OIML certified for medical dosing accuracy
Depth 910 mm
Height 56 mm
Weight 140 lb
Wheelchair scale auto weight lock feature true
Wheelchair scale capacity 1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Wheelchair scale connectivity RS232 serial, USB, and optional Ethernet. Wi-Fi/Bluetooth available on some models.
Wheelchair scale detecto units locking into lb or kg true
Wheelchair scale display type high LCD
Wheelchair scale keys 19 key, color-coded, sealed membrane
Wheelchair scale number of characters 5 digit, 7 segment
Wheelchair scale platform size 32 in x 36 in x 2.2 in / 81 cm x 91 cm x 5.6 cm
Wheelchair scale power requirements 6 C batteries (not included) or model 6800-1045 AC adapter (included)
Wheelchair scale touch screen 3.5 in W x 3 in H / 89 mm W x 76 mm H backlit blue LCD
Wheelchair scale vertical foldup platform true
Width 810 mm
